Packaging our bedroom Raspberry Pi for Hi-Fi

Contents

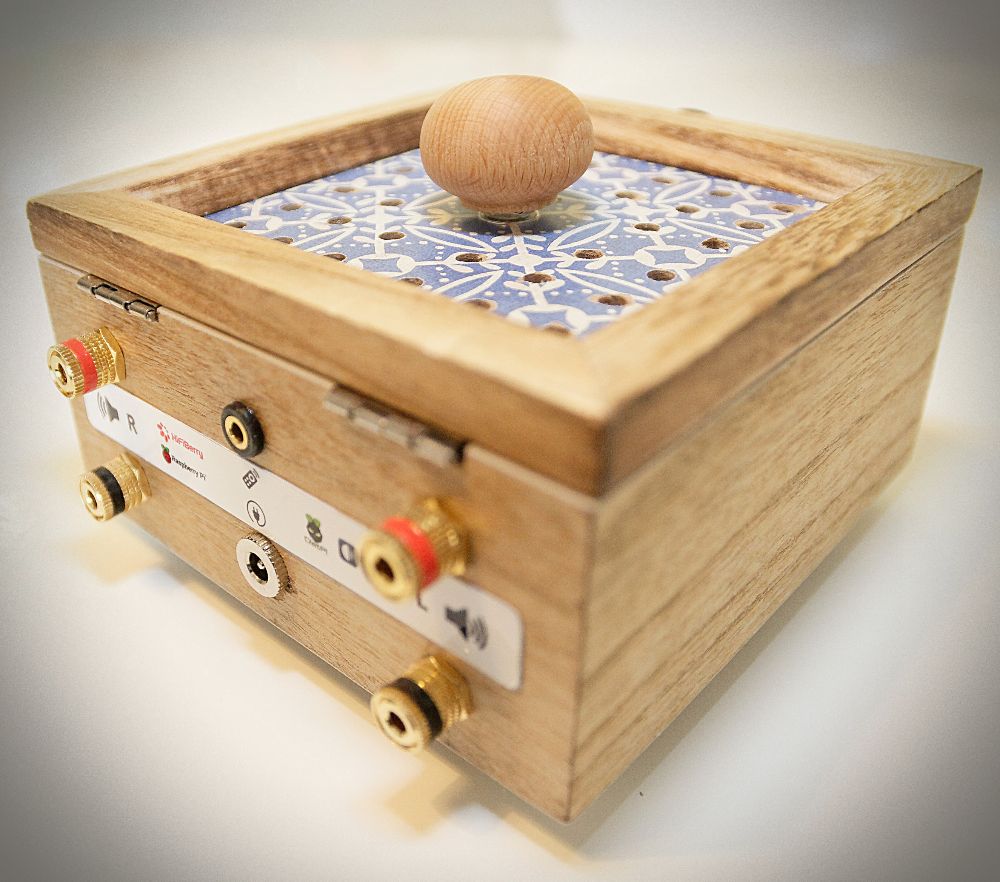

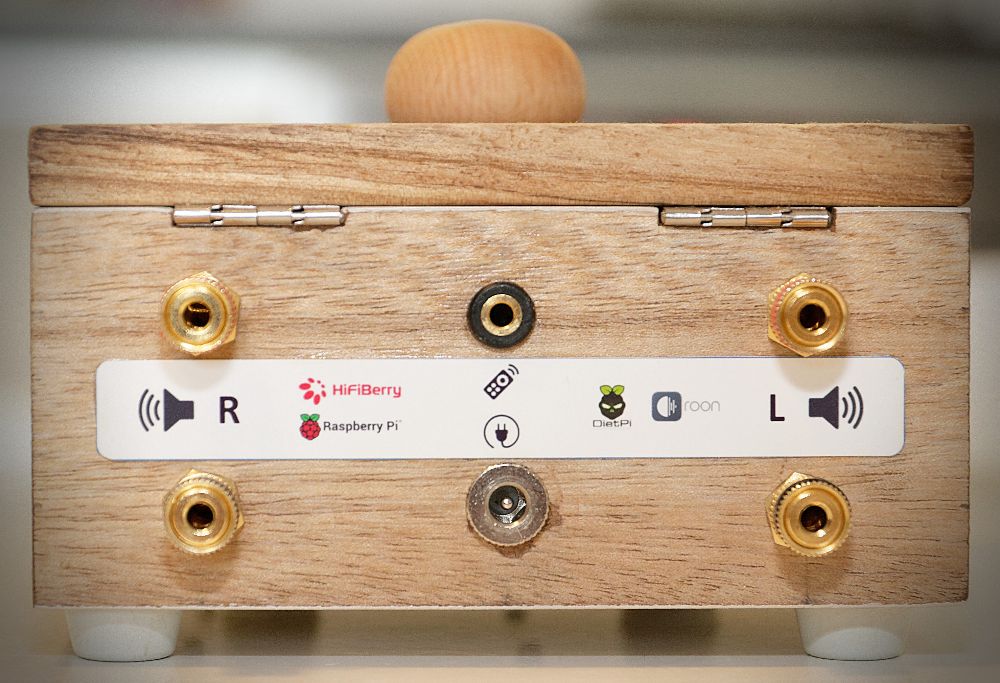

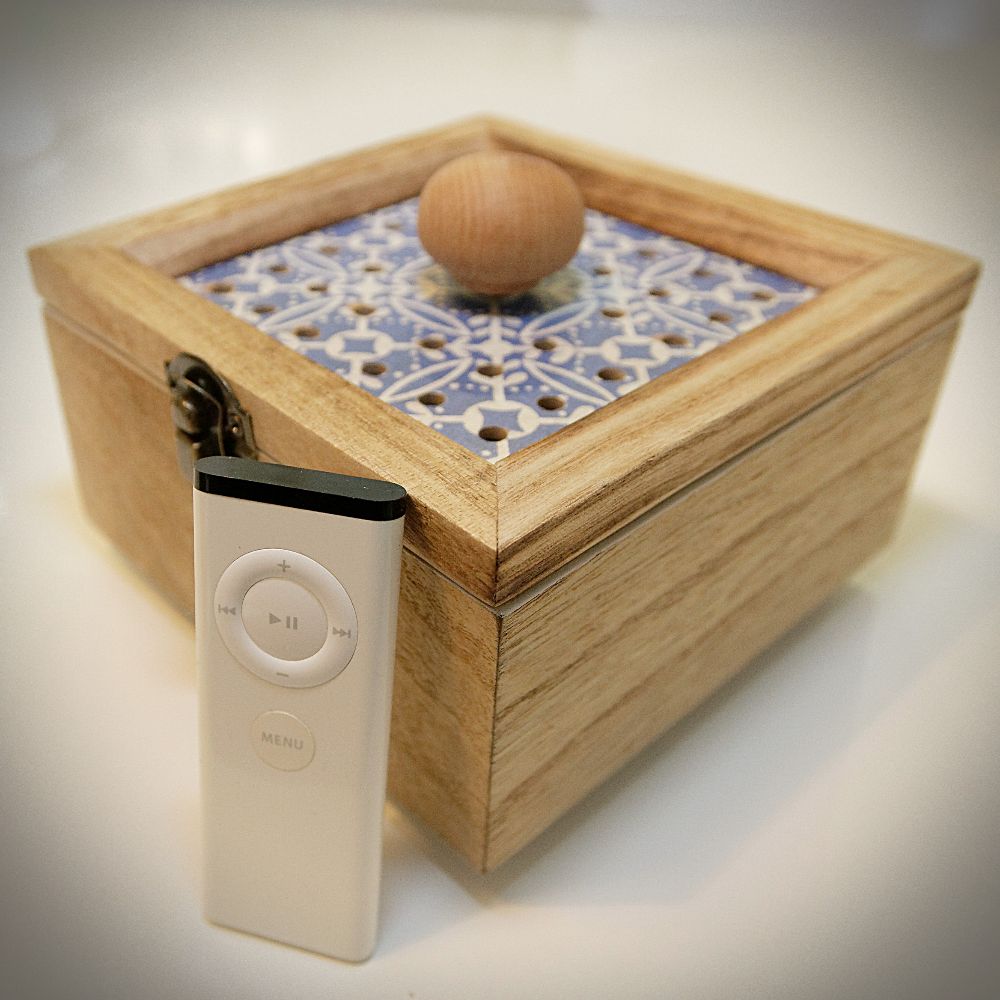

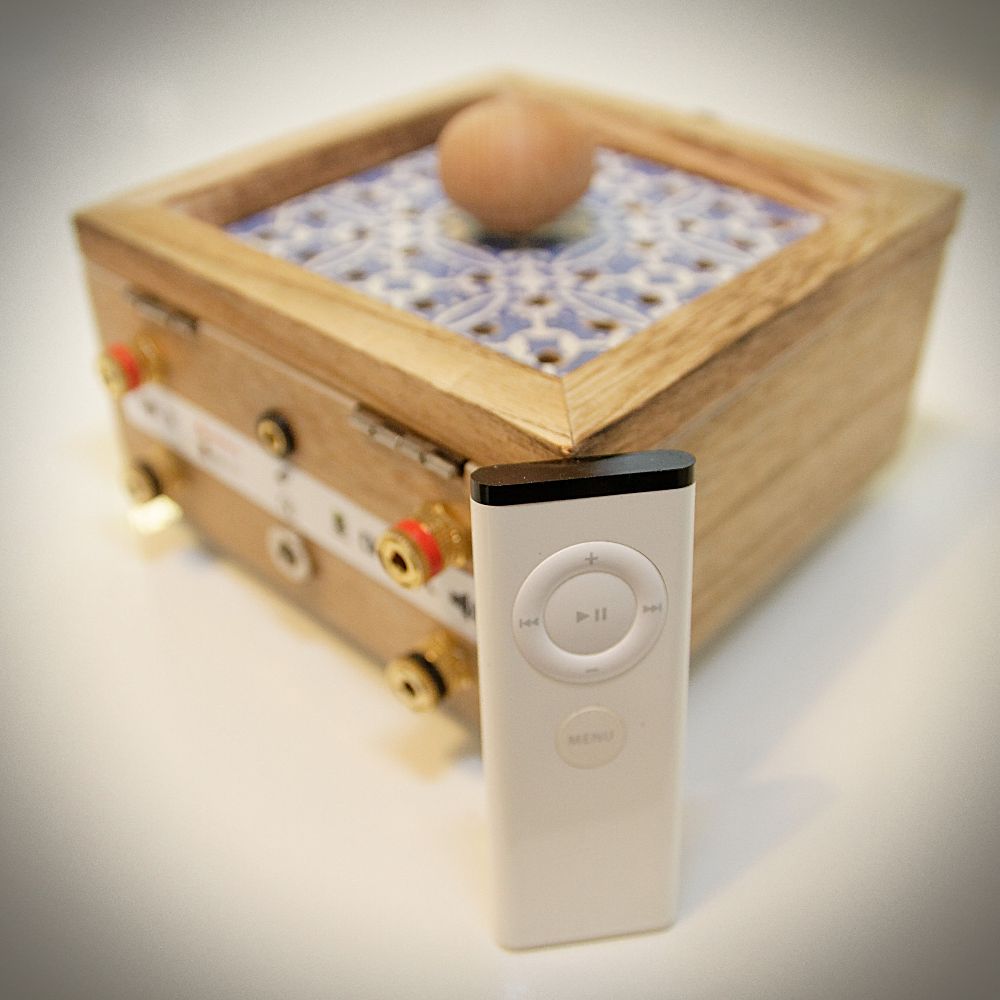

TL;DR - The finished product

Introduction

Our bedroom music, part of a larger setup, is a Roon endpoint based on the following equipment:

    • a Raspberry Pi 3 B microcomputer, with on-board 2.4 GHz Wi-Fi, running DietPi Linux and Roon Bridge
  • a HifiBerry AMP2 IQaudIO (now Raspberry Pi) DigiAMP+ add-on board, a 24 bit, 192 kHz capable PCM DAC with a 35 W class D amplifier
  • a 65 W (18 V, 3.34 A) switch mode power supply brick that powers everything
  • a pair of Wharfedale Diamond 9.1 bookshelf speakers, turned white
  • 2.5 mm2 OFC speaker cables

Most of the equipment is hidden under the bed, with only the speakers visible. Volume control was solely through the Roon Remote application on the laptops or mobile devices.



It was quite "naked", though!

I wanted to get the following improvements:

  • Use Wi-Fi on the 5 GHz band, 2.4 GHz is too crowded in our building, interferences are killing network performance. It's difficult to play standard CD quality music during the evening, forget high-resolution music
  • Have an enclosure that is not too geeky-looking and able to have all sorts of sockets fitted
  • Proper speaker binding terminals, no geeky screw-in stuff, but practical 4mm banana plugs
  • Physical volume and mute button, something that controls volume the good old way, quickly
  • Infrared remote control for volume and mute as well as Roon's play/pause, next and previous track
  • All that while fitting within a budget as close to zero as possible!

Improvements

Kitlist

Here is a list of all the parts used:

  • 1x USB Wi-Fi adapater, N, 5 GHz Replaced by the built-in capabilities of a newly acquired Raspberry Pi 3 B+

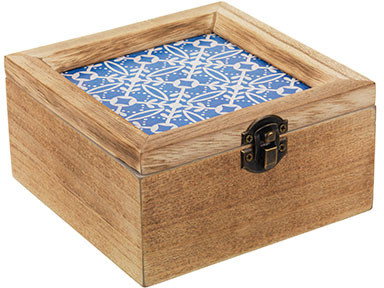

  • 1x small wooden box, from Sainsbury's downstairs - Enclosure - £6
  • 1x 5.5 mm x 2.1mm DC power jack female, barrel, panel mount - Power input - £2.77 for a pack of 5
  • 4x binding posts, screw type, 4 mm, panel speaker connectors - Easy speakers connection - £6.95

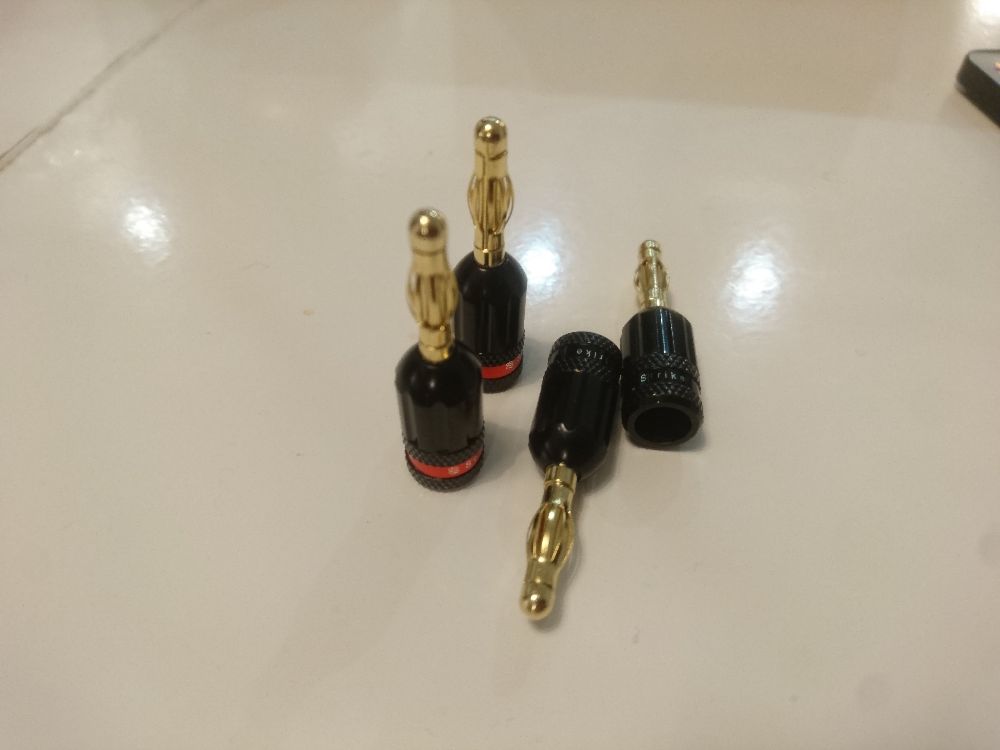

  • 4x Sewell Strike 4mm banana plugs - for the speaker cables - £0 (I had spares)
  • 1x rotary encoder with switch - Will control the volume/mute - £2

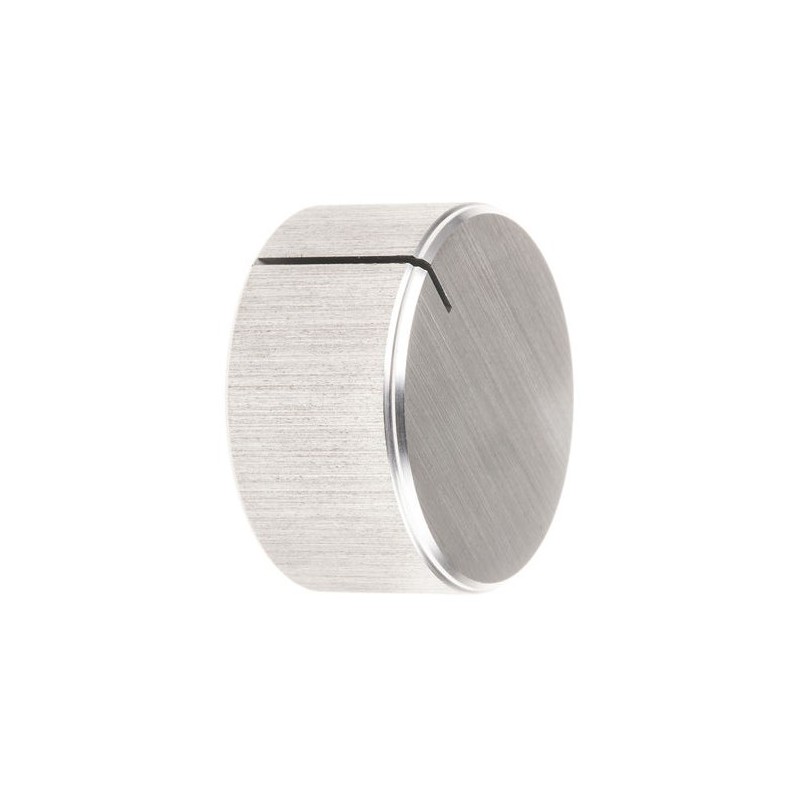

  • 1x silver solid aluminium volume knob - £3
  • 1x infrared sensor (Vishay IR sensor - 38KHz - TSOP4838) - £2
  • 1x white Apple remote control - £0 (a gift from a friend!)

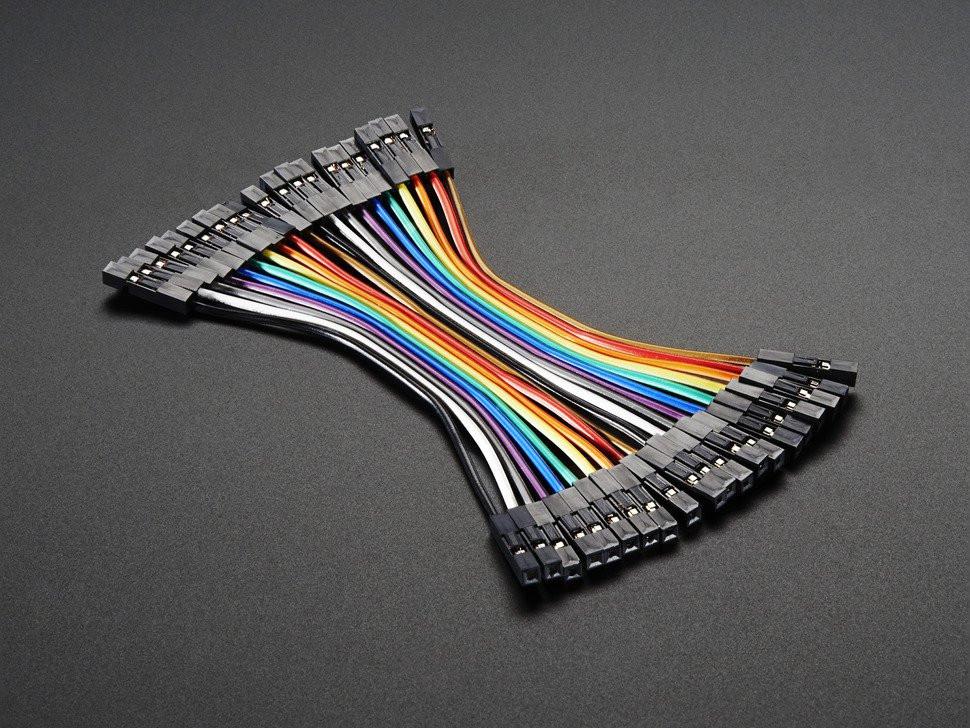

  • 20x 3" female/female Jumper wires - £2

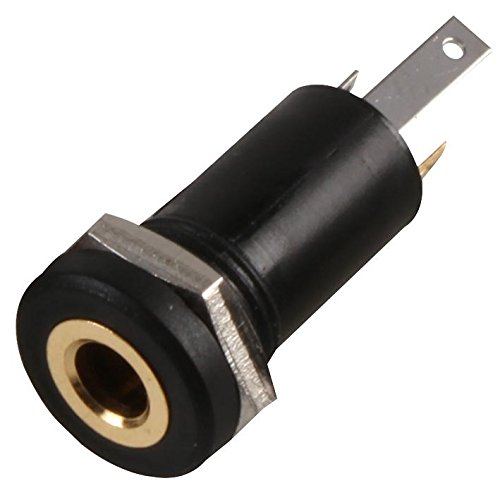

  • 1x 3.5mm mini jack chassis panel Mount Stereo Headphone Input Socket Connector - For the infrared sensor connection - £1.89

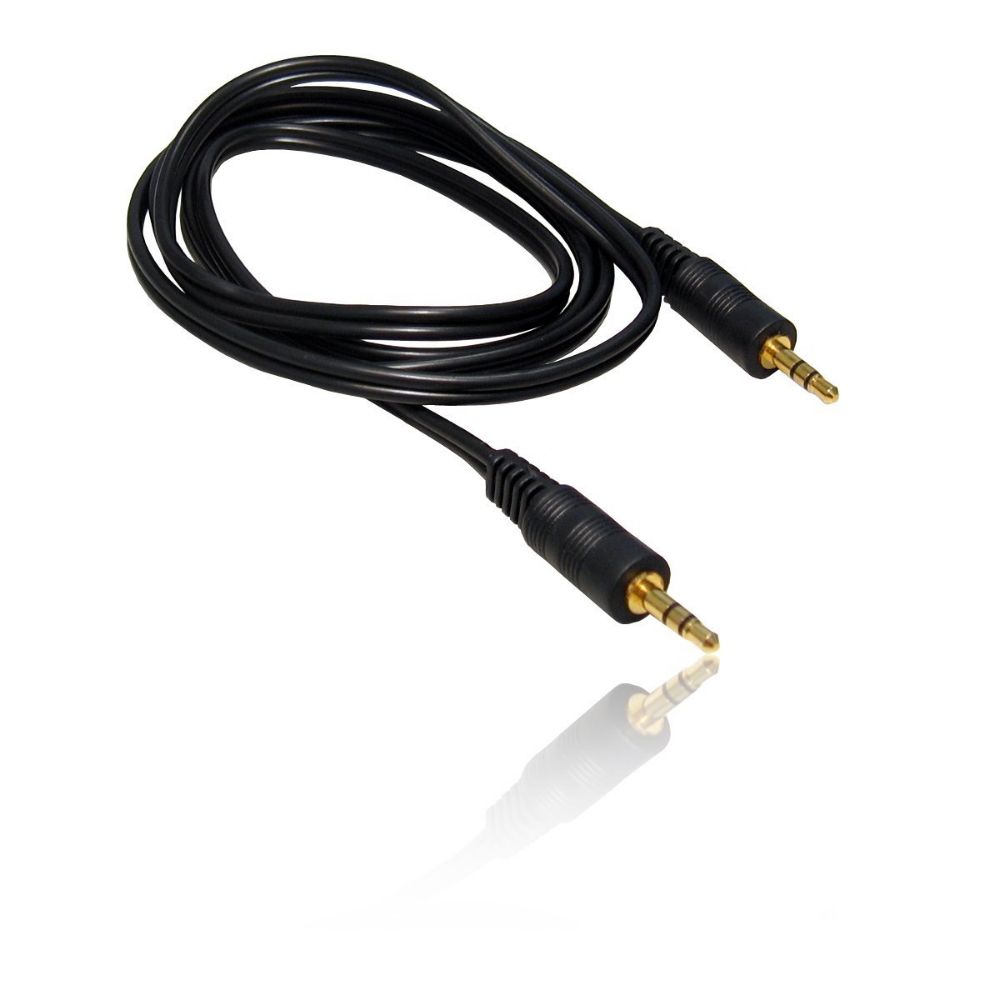

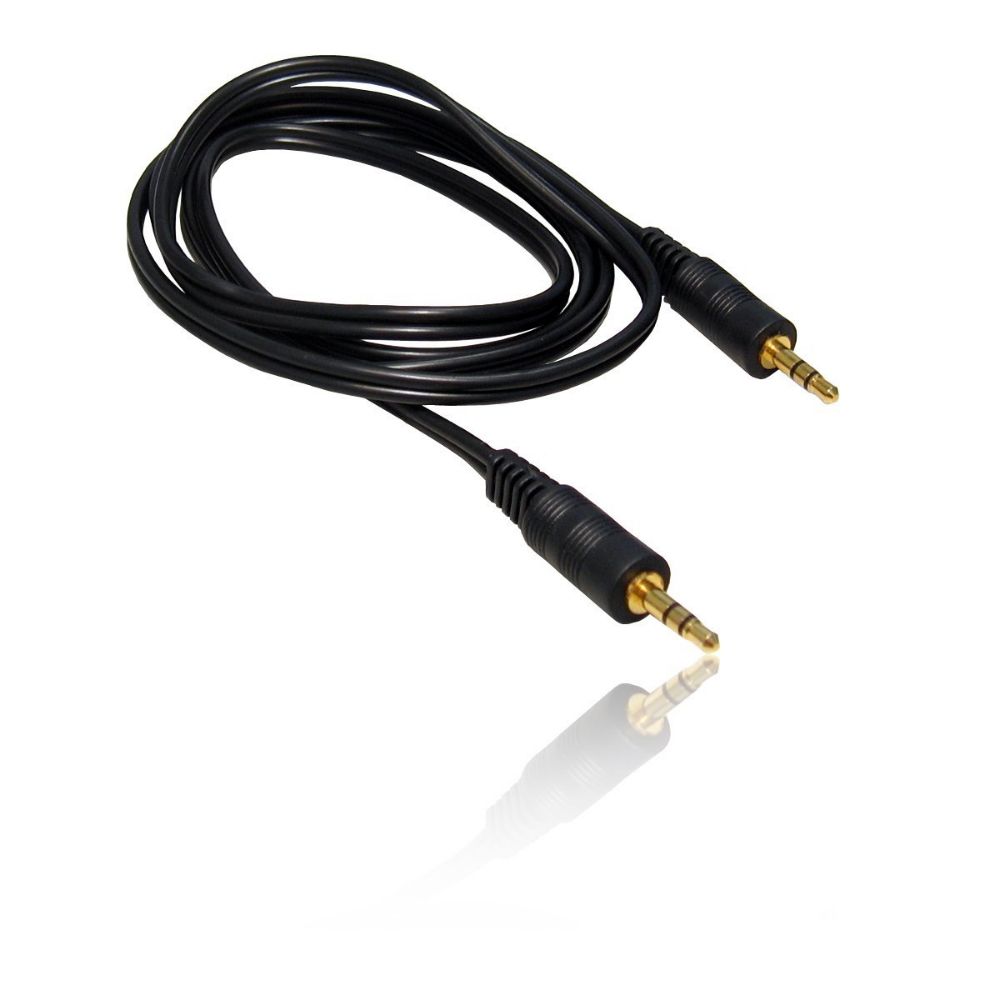

  • 1x 3 m 3.5 mm male/male stereo jack cable - For the infrared sensor - £2.78

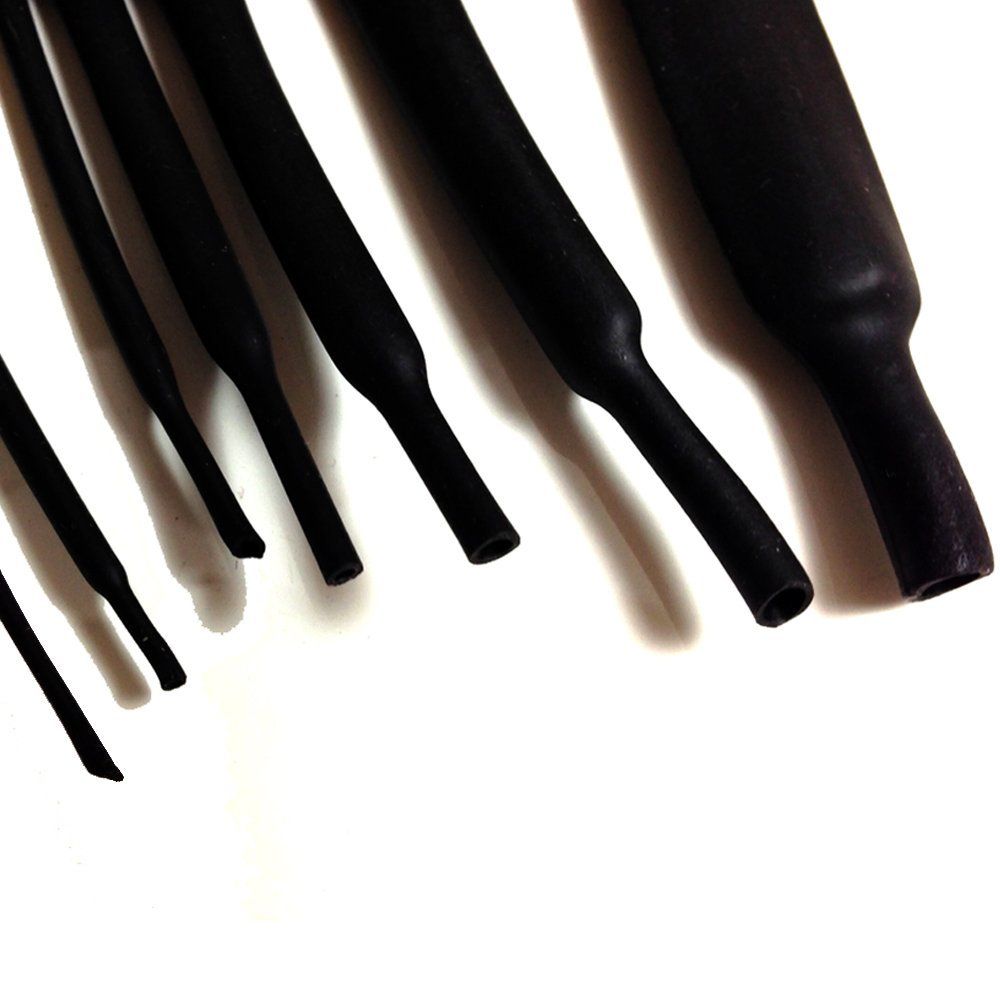

  • 1x kit of various diameters of black heat shrink tubing - Will insulate connections and make things look tidy - £1.79
  • 4x standoffs and screws - For mounting the Raspberry Pi - £0 (I had spares)

5 GHz USB Wifi

Anything below is now for historical purposes, just in case someone else needs it. I've scrapped that USB dongle and now use a Raspberry Pi 3 B+ with built-in 5GHz capabilities that are supported out of the box.

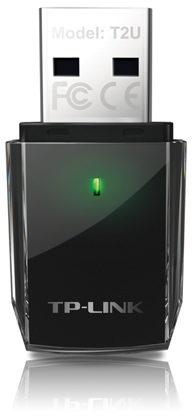

I bought a TP-Link Archer T2U adapter. It's is a dual band (2.4 and 5 GHz) A/B/G/N/AC model. I just need 5 GHz N at home.

Linux support is not stellar. I had to manually compile a specific driver (make sure that you read this bug) and force the use of the access point's 5 GHz radio (BSSID) through wpa_supplicant.conf:

country=GB
ctrl_interface=DIR=/var/run/wpa_supplicant GROUP=netdev
update_config=1

network={
    ssid="MyNetworkName"
    bssid=XX:XX:XX:XX:XX:XX
    scan_ssid=1
    key_mgmt=WPA-PSK
    psk="MyPassword"
    freq_list=5180 5200 5220 5240
}

32 bit, 384 kHz PCM audio is now flawlessly streaming at any time of the day!

Enclosure

Wood preparation

I've unscrewed all the lock and hinges and treated the wood with Restor-A-Finish and Feed-N-Wax. This gave the grain a bit of a better look and will hopefully keep the finish more durable. Needless to say, this is very crap wood!

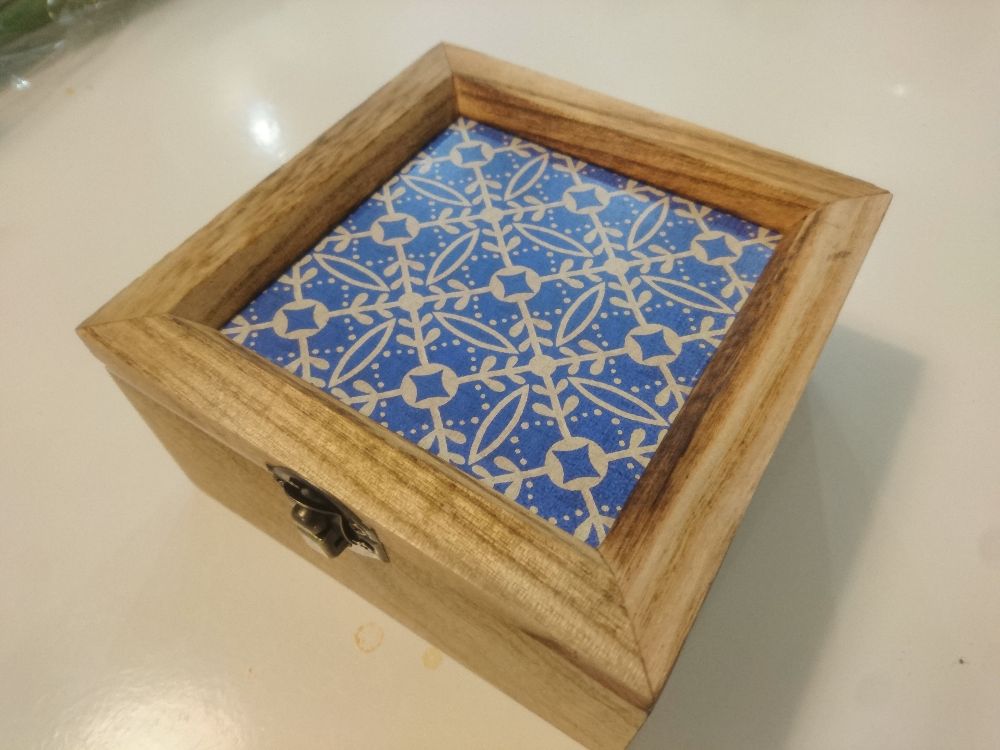

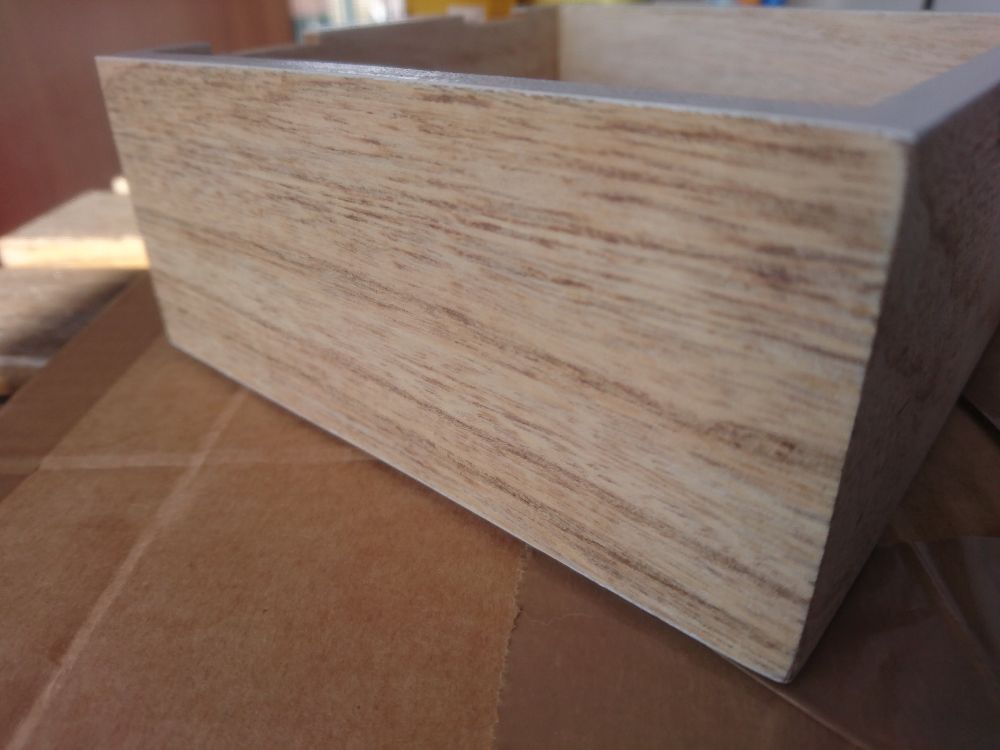

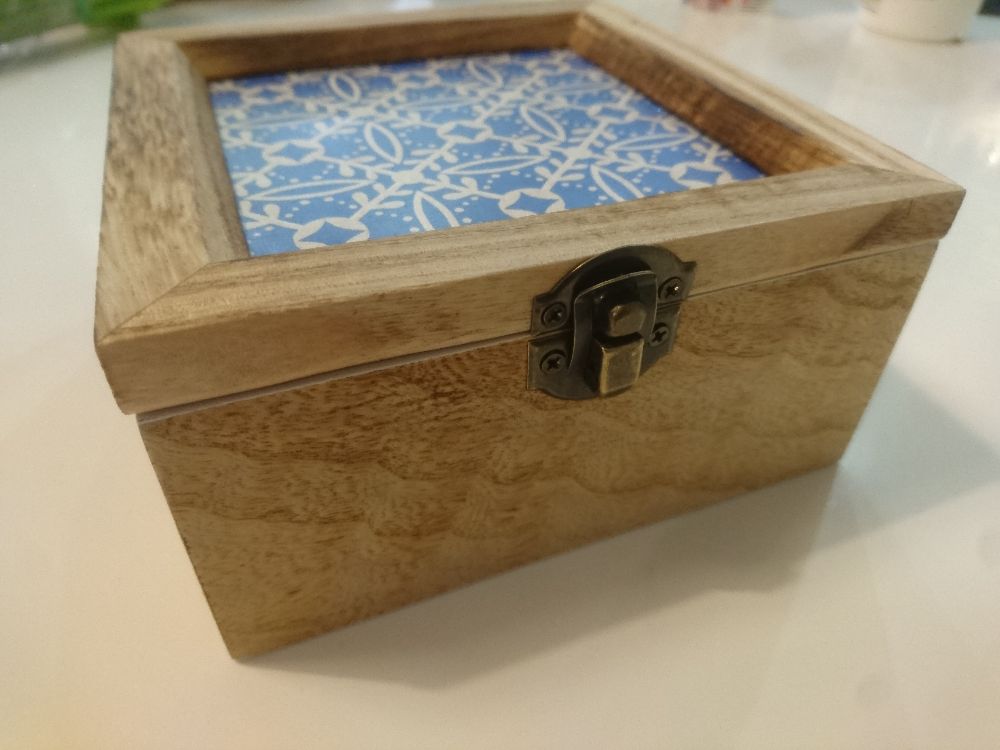

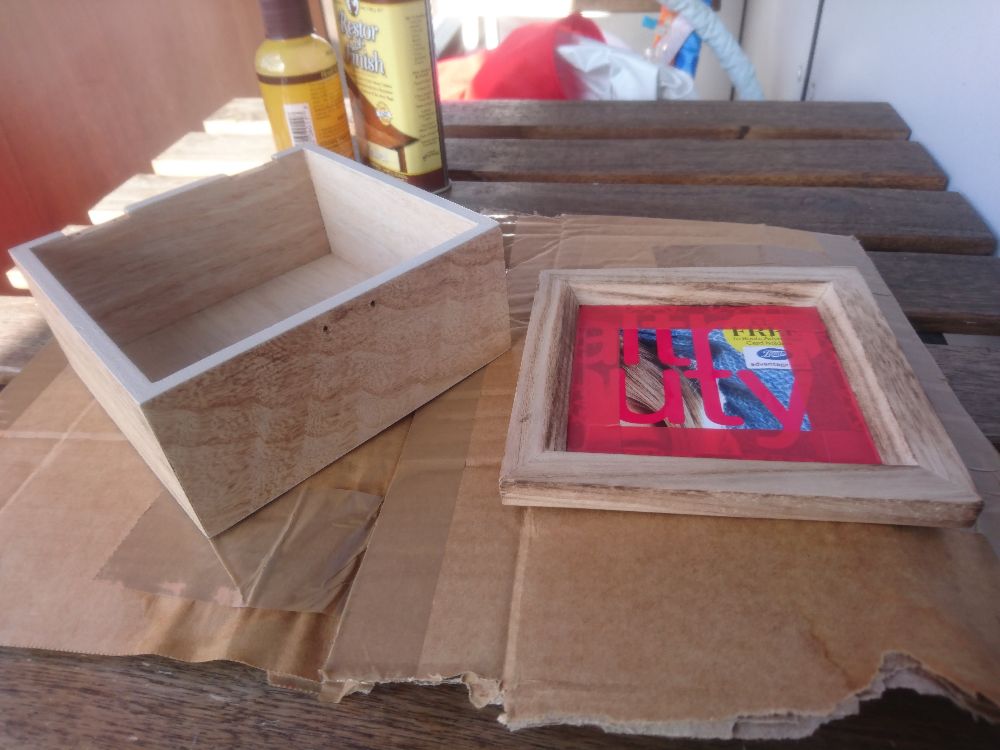

Before:

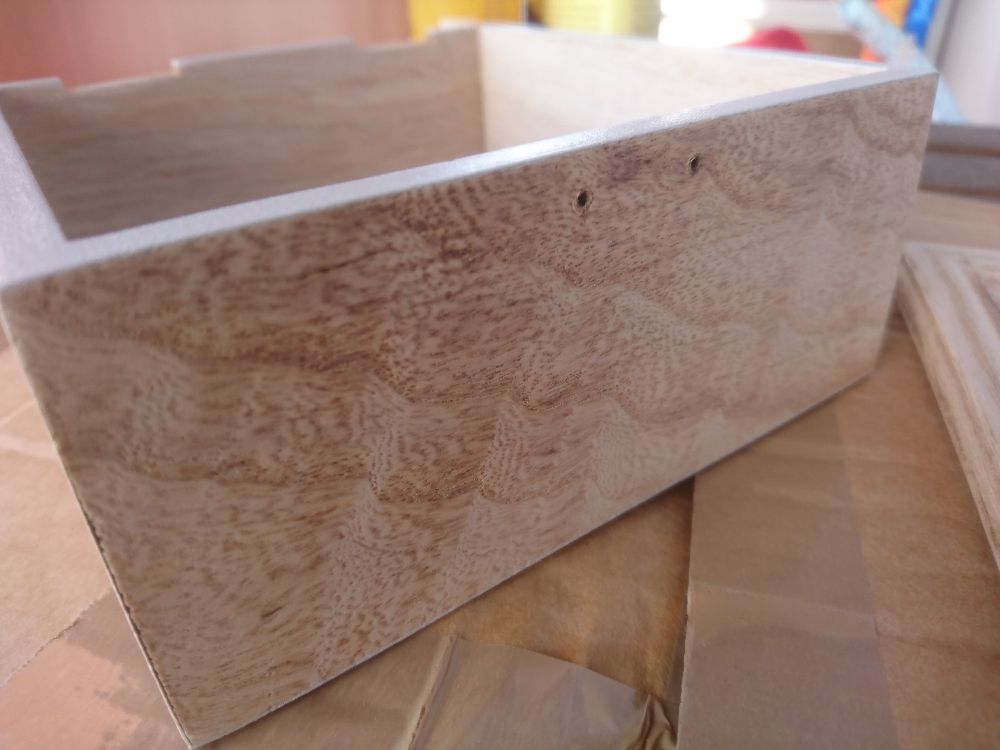

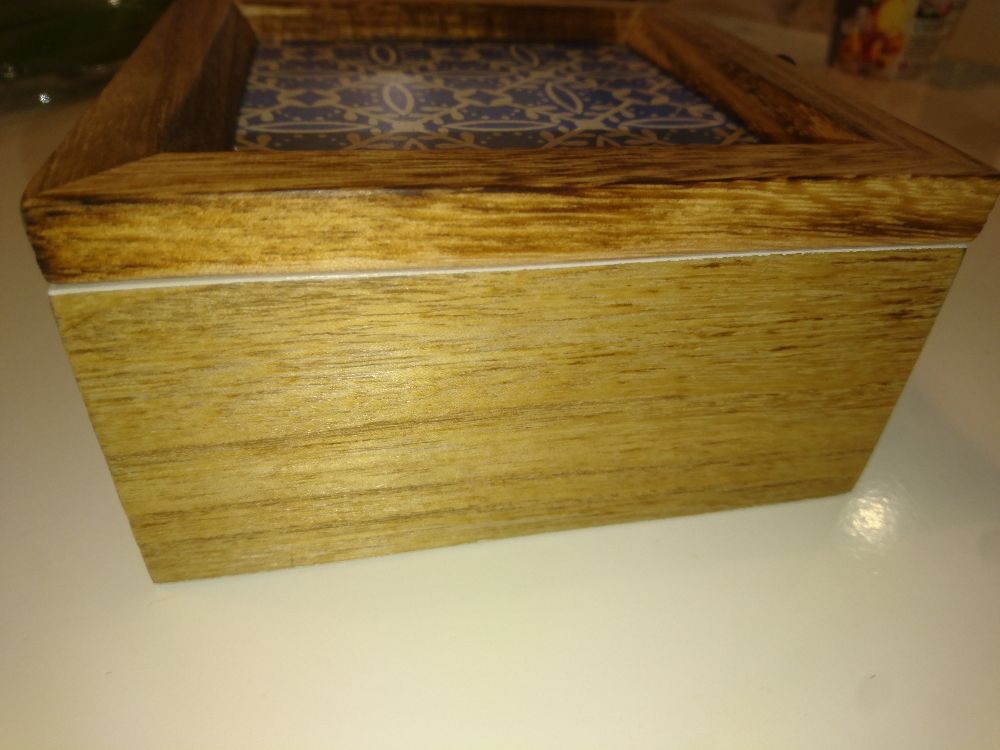

After:

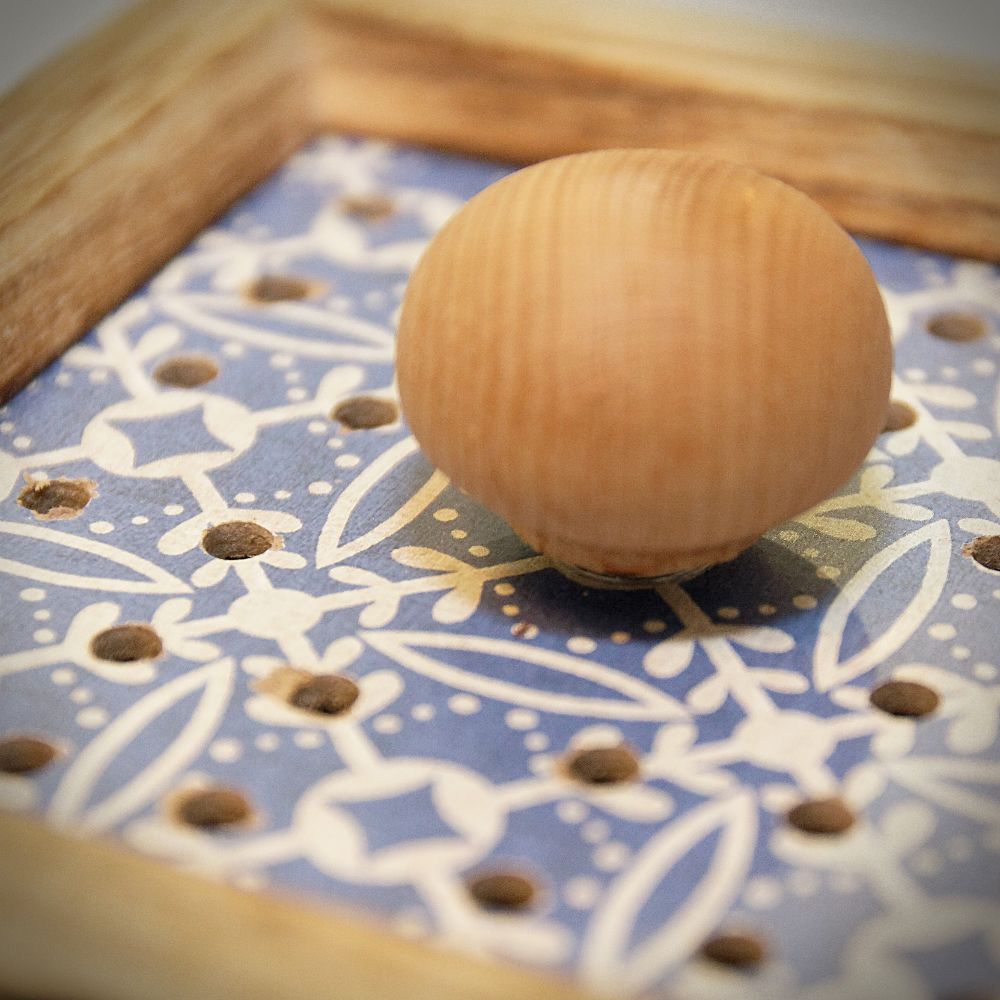

Ventilation

The Raspberry Pi and the very efficient class D amp do not generate much heat. This is not a reason to leave them in a completely closed box.

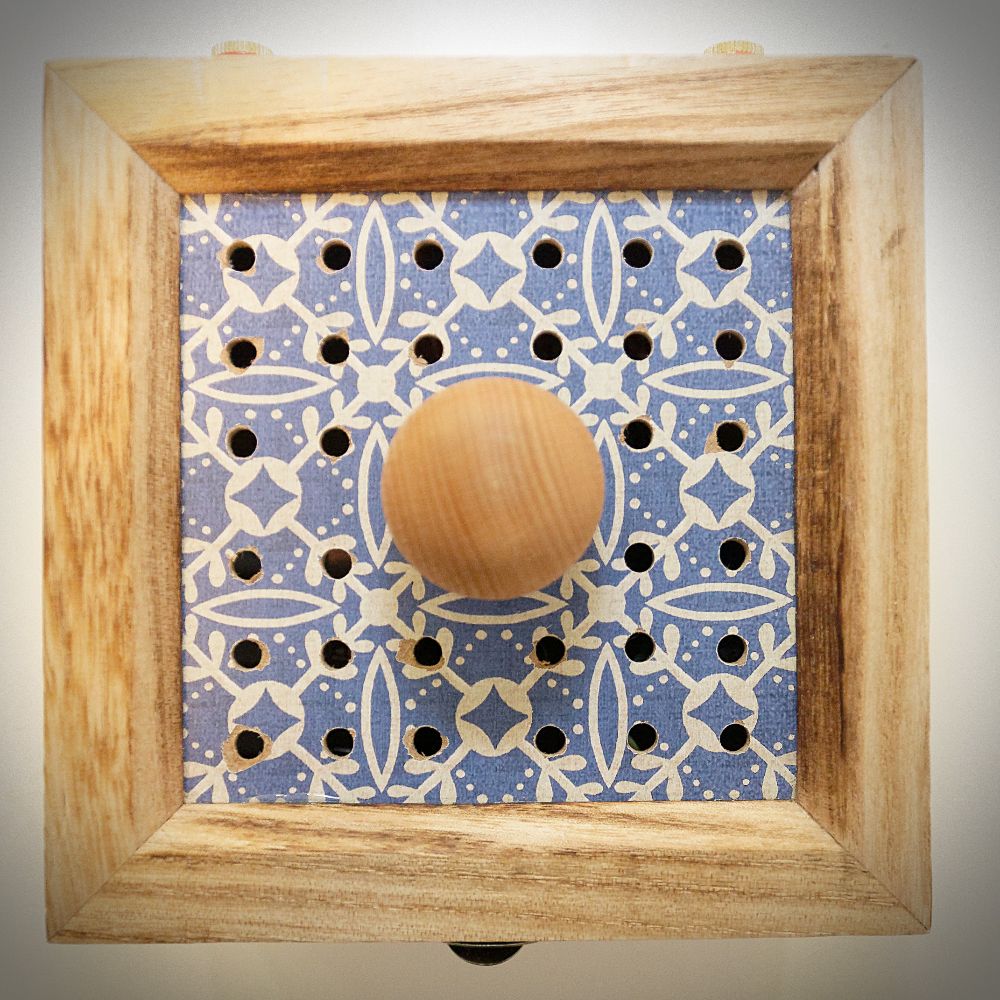

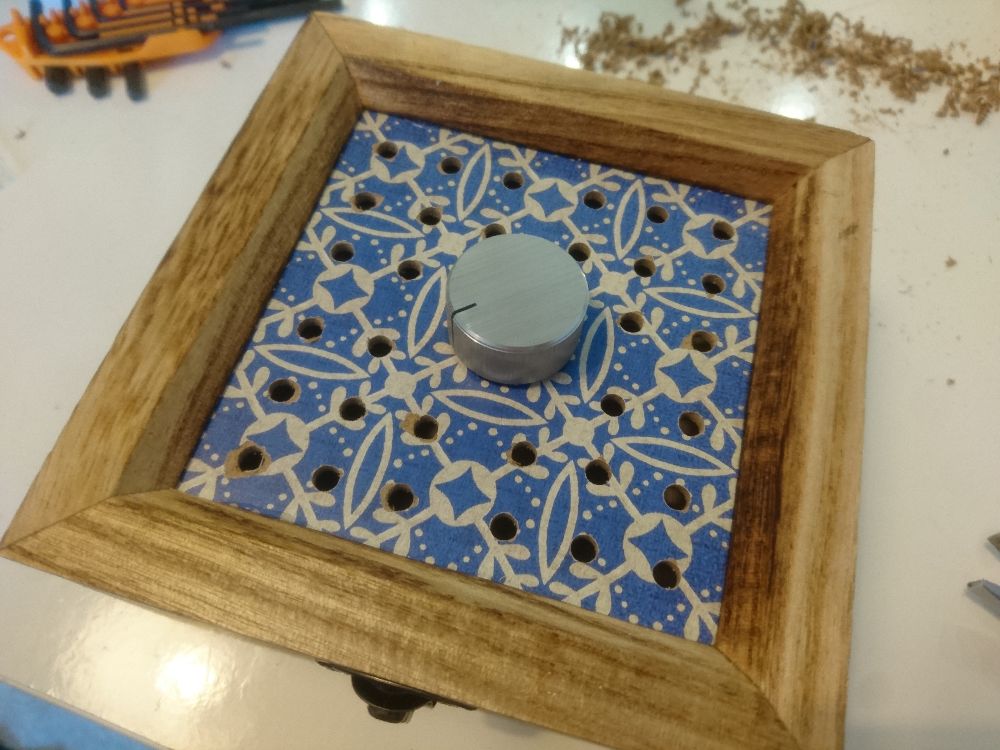

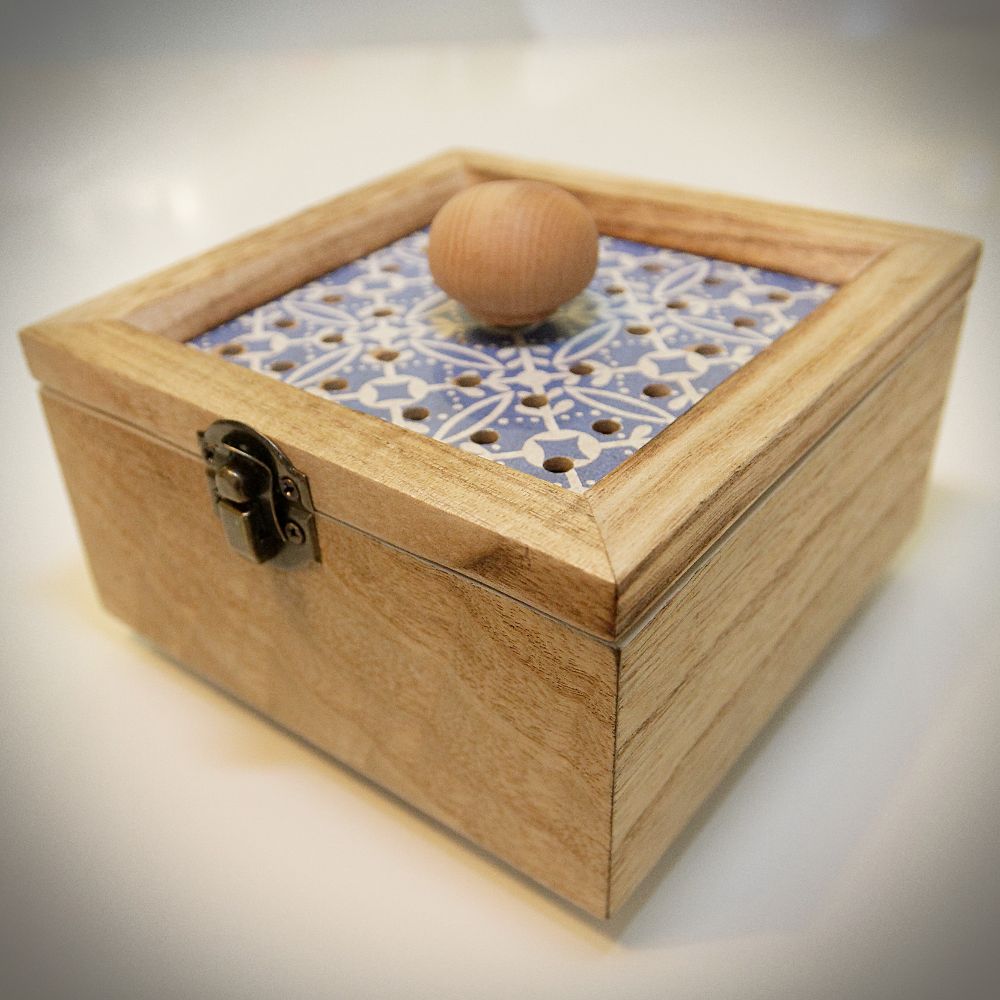

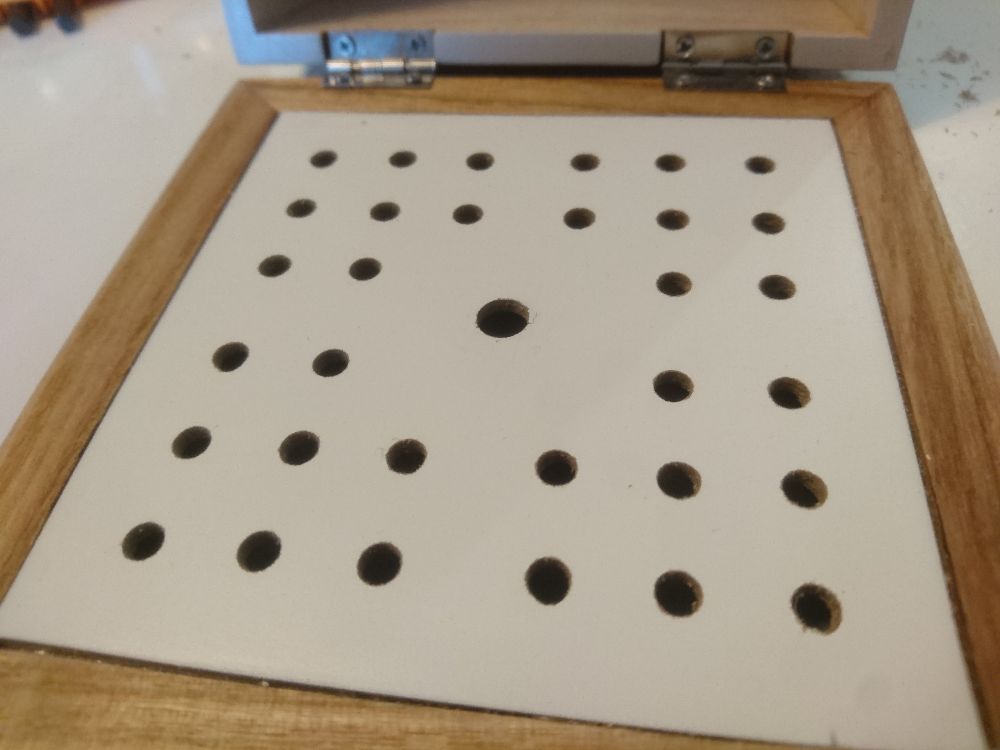

Holes on the top:

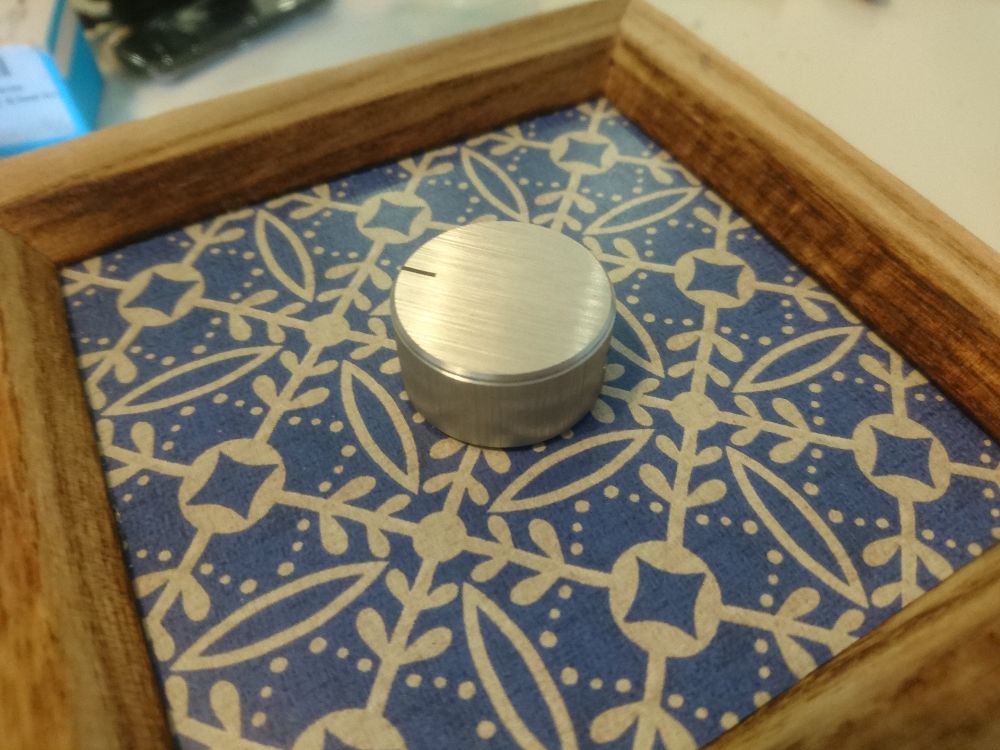

Volume knob

Hardware

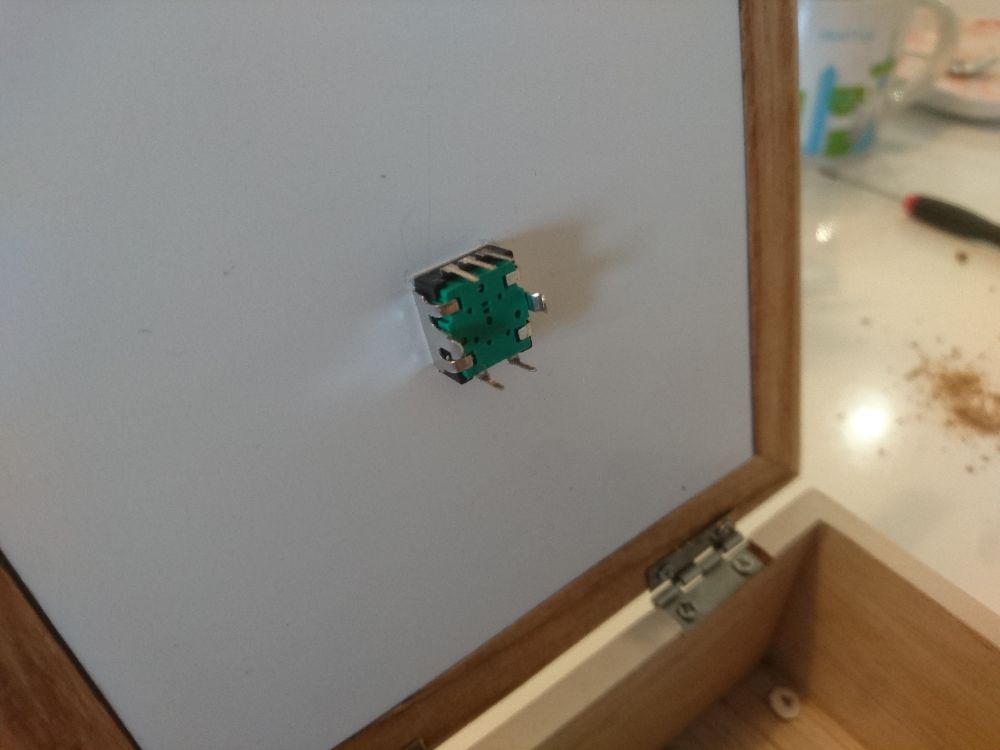

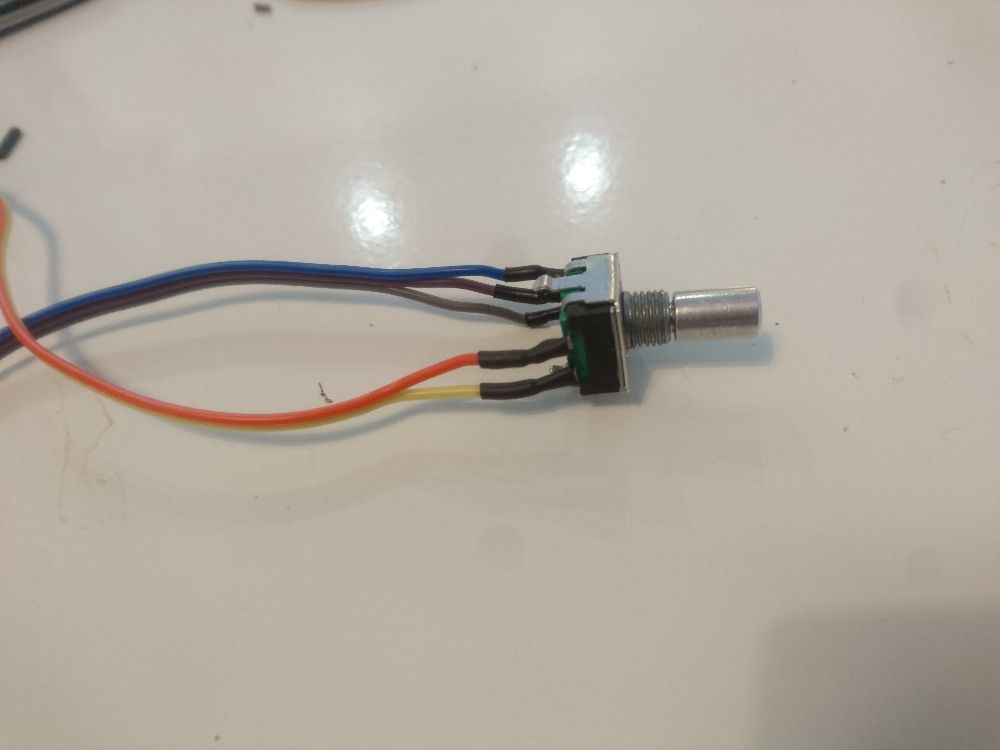

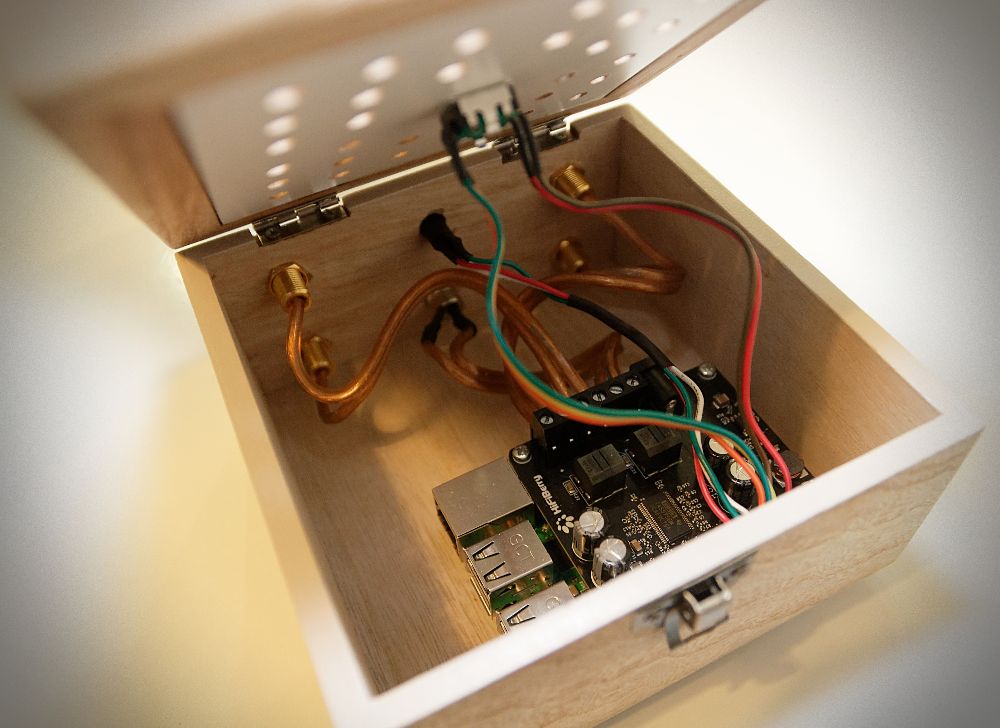

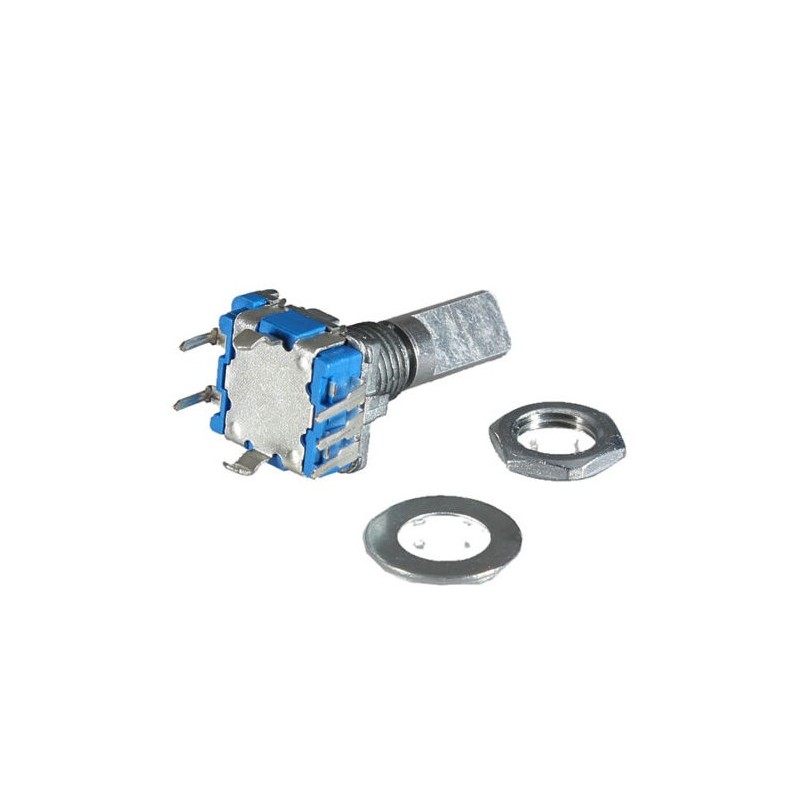

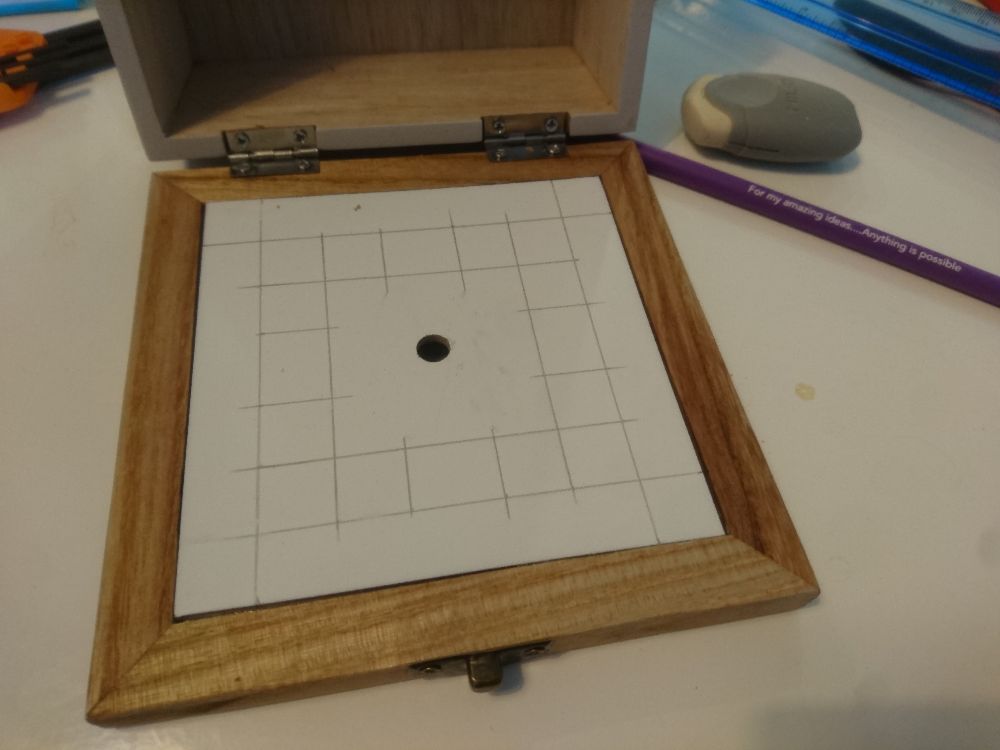

The rotary encoder is mounted on the top plate, dead center. The box is deep enough, there will be no pin in close proximity with the Raspberry Pi below.

Three pins are used for the rotary encoder (volume), two pins for the push button (mute/un-mute).

Software

I used this python script. I had to adapt it with the GPIO pins I've used and change the mixer from PCM to Digital.

It works like a charm!

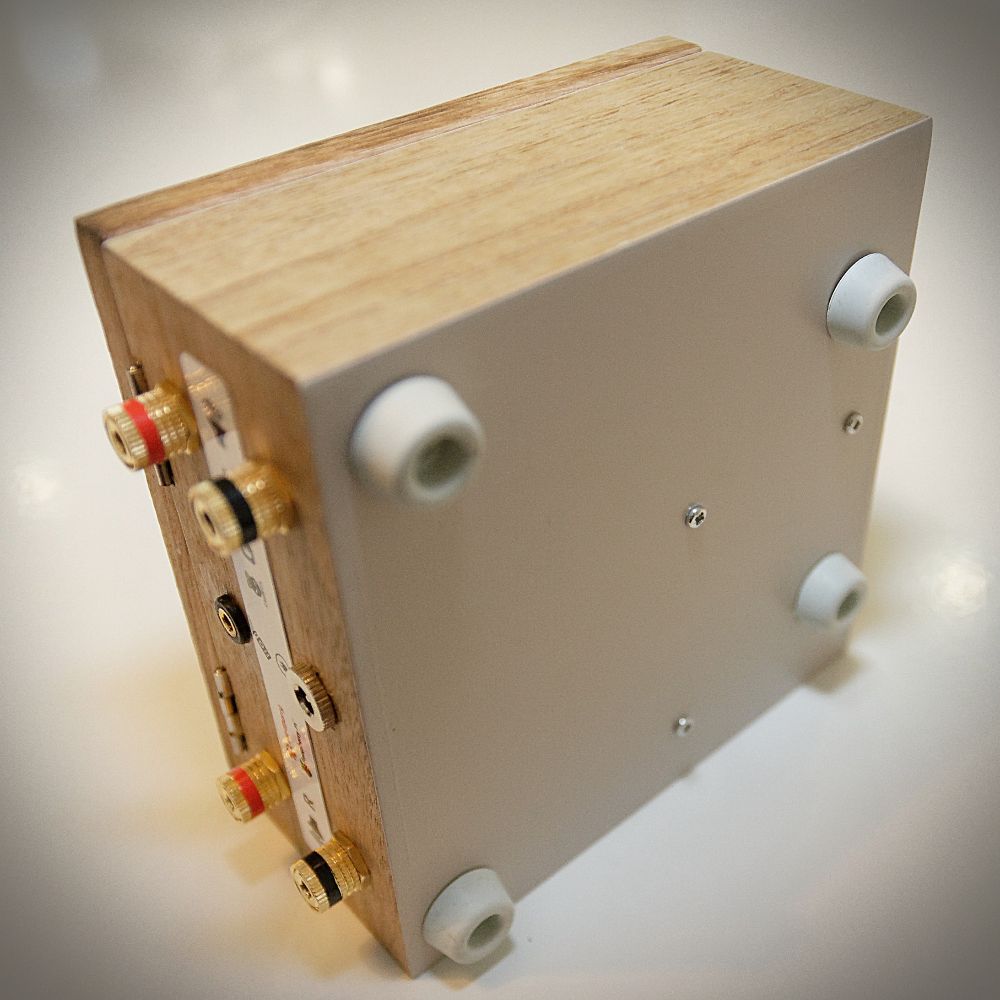

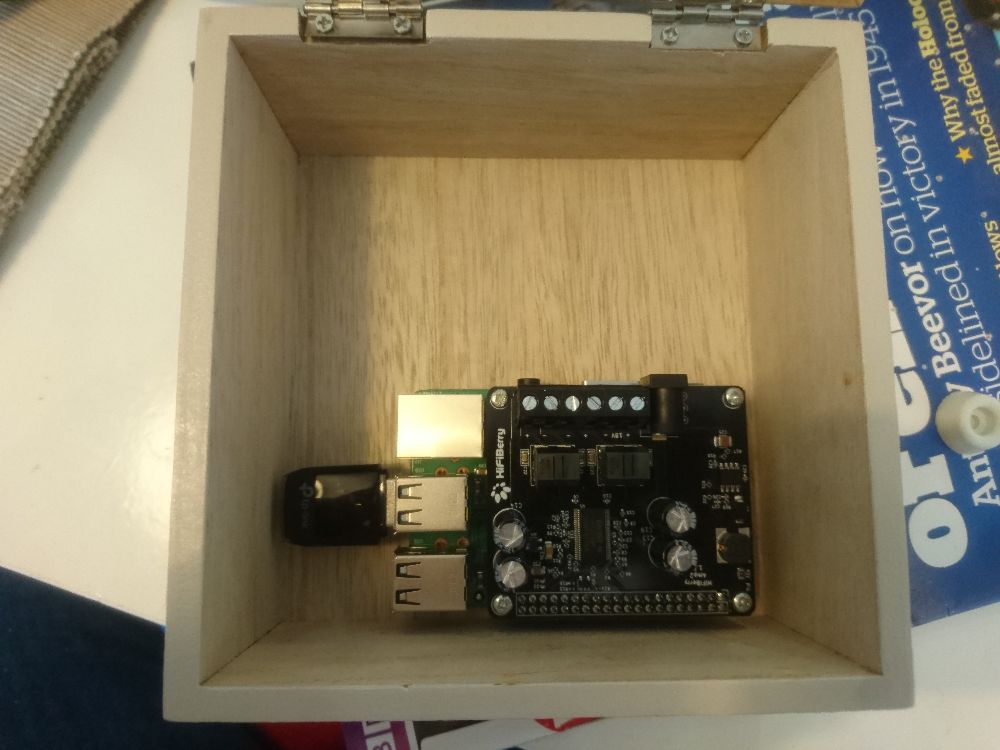

Raspberry Pi

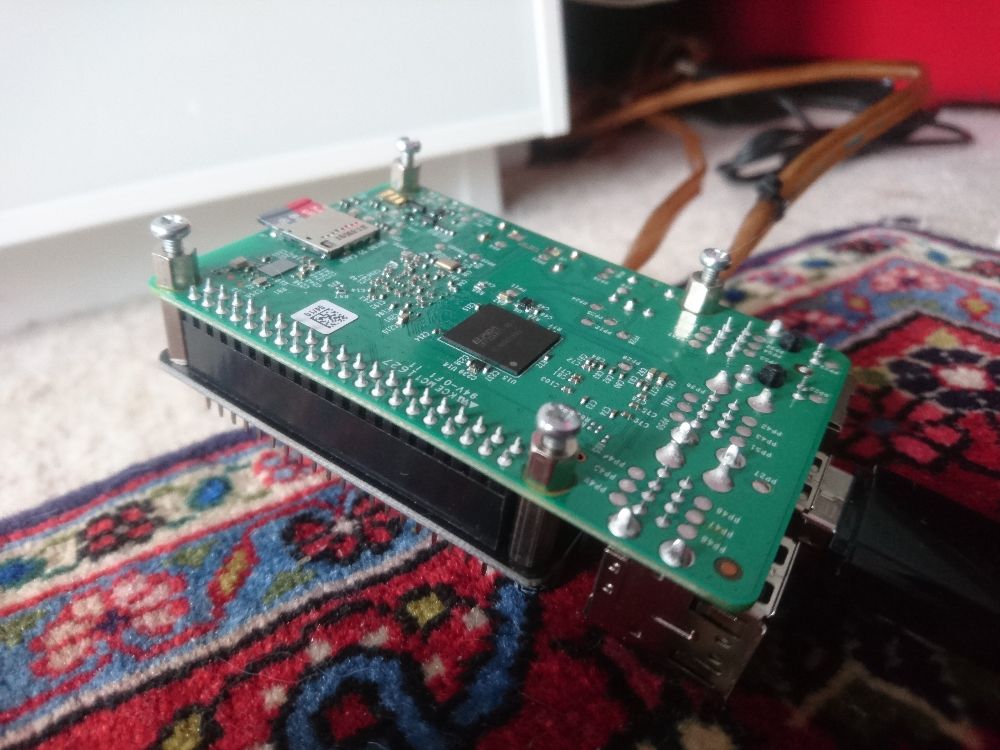

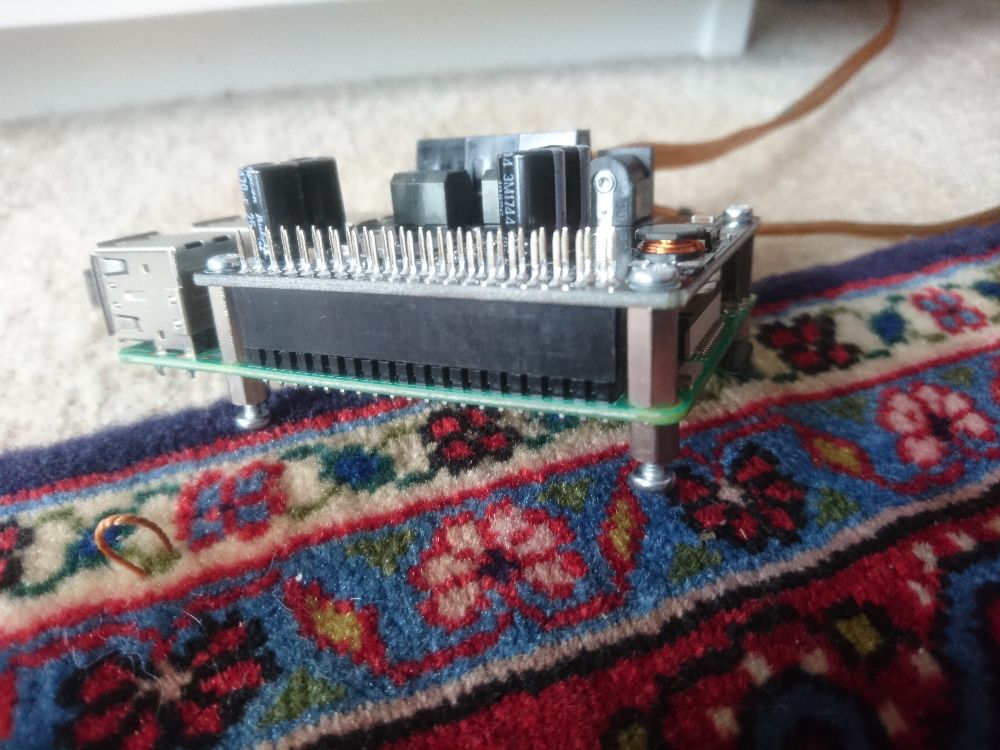

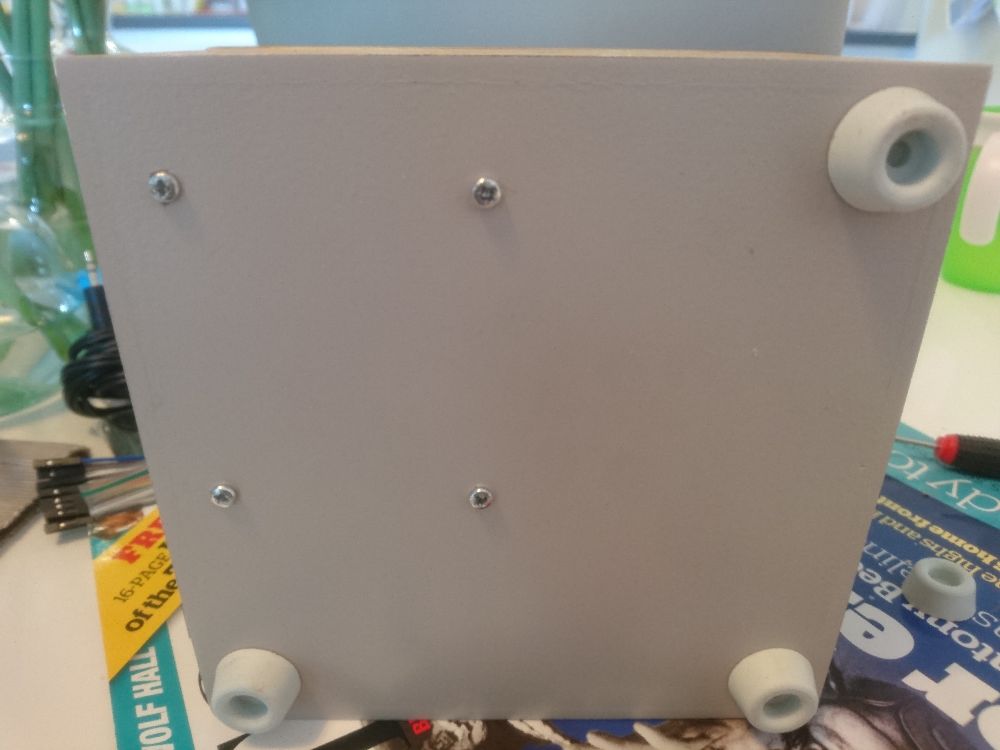

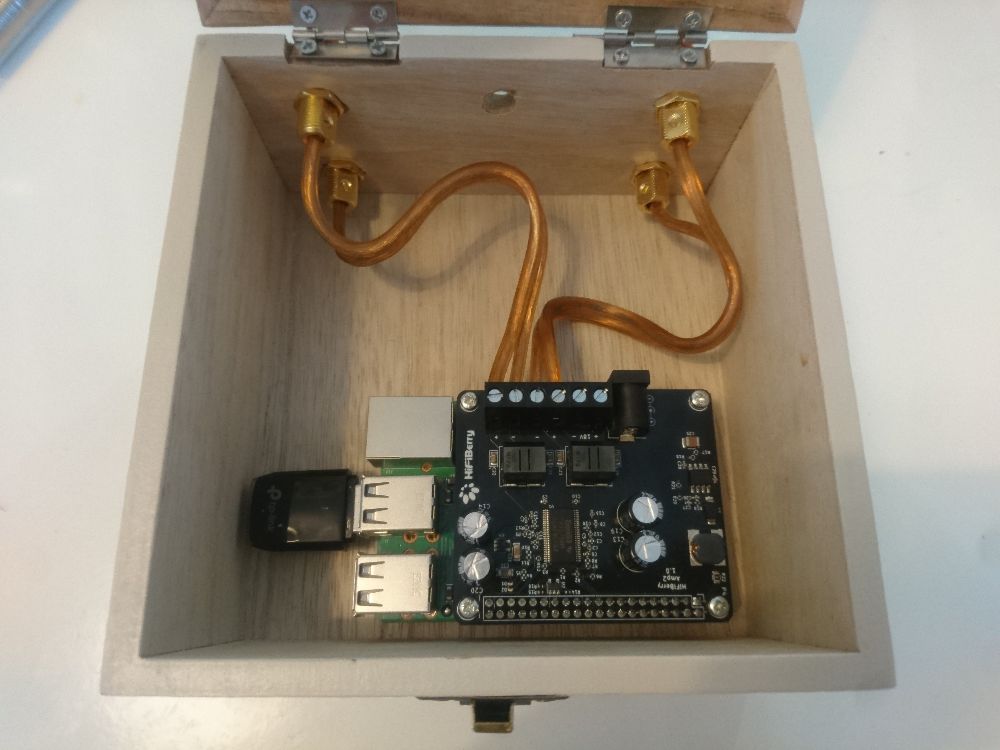

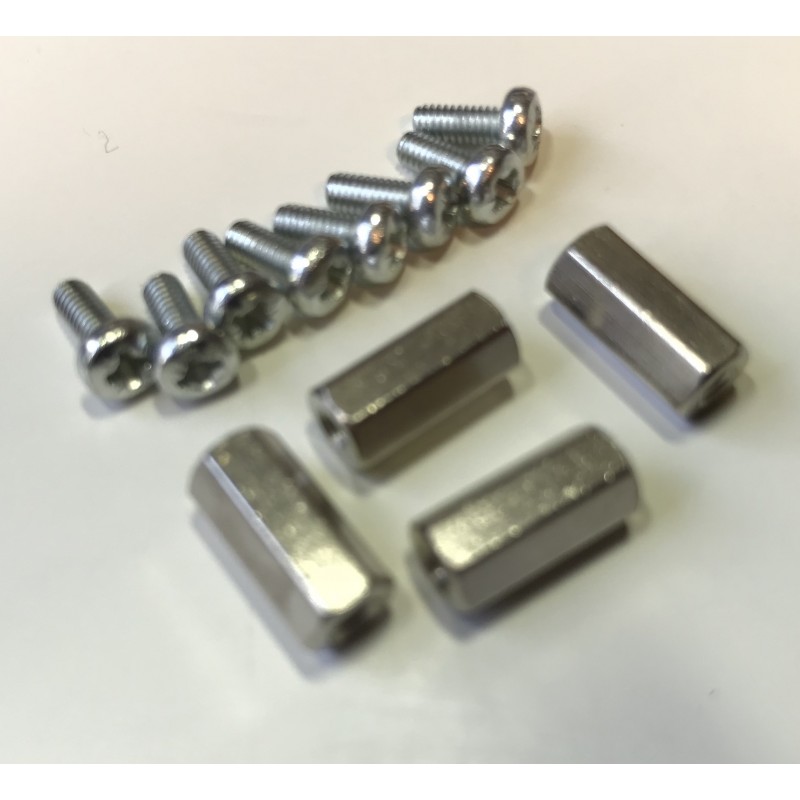

Standoffs and screws ready for mounting on the thin bottom board of the box, followed by four 2.5 mm holes:

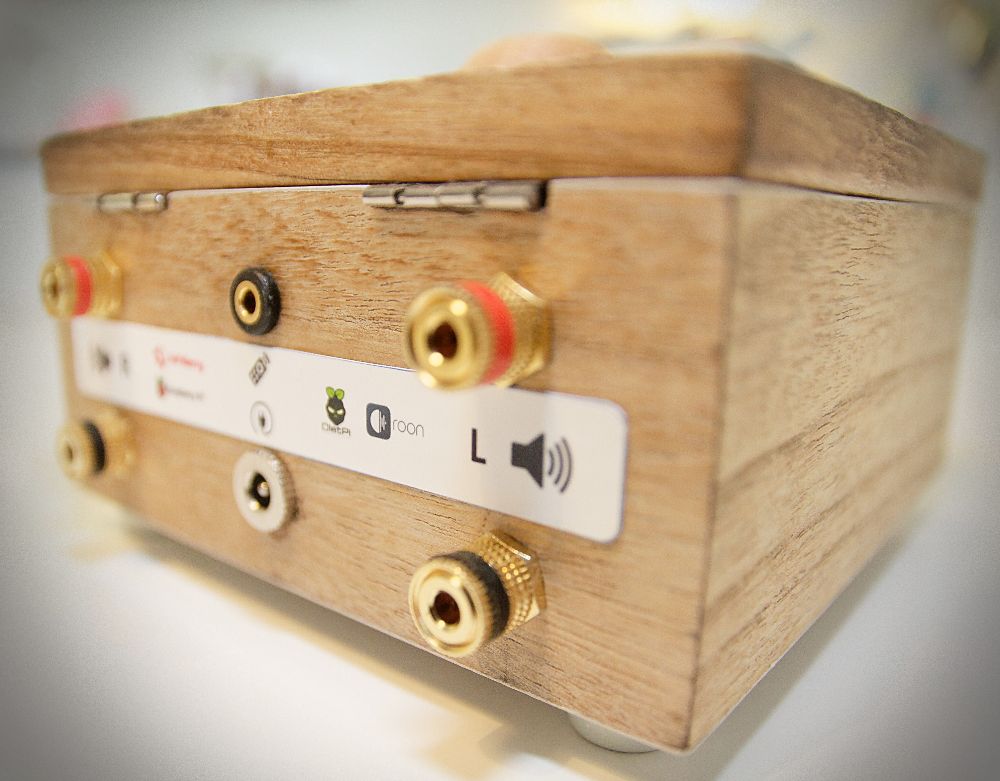

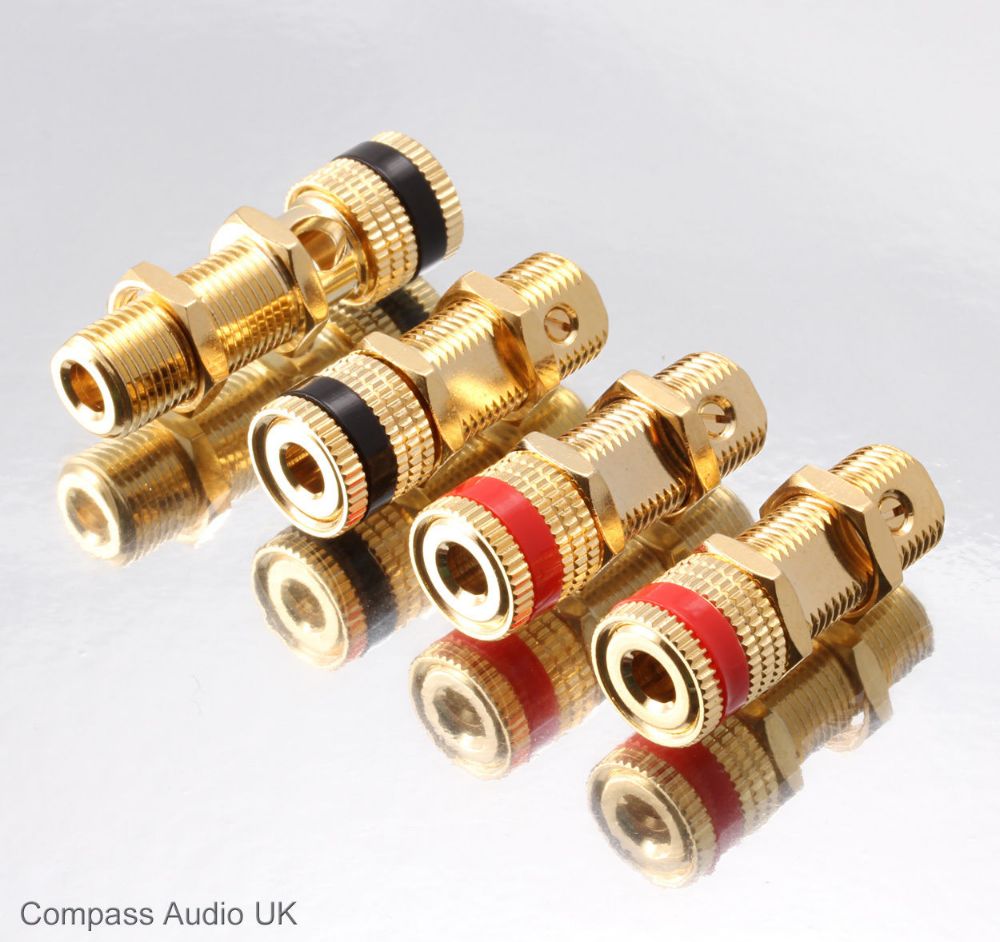

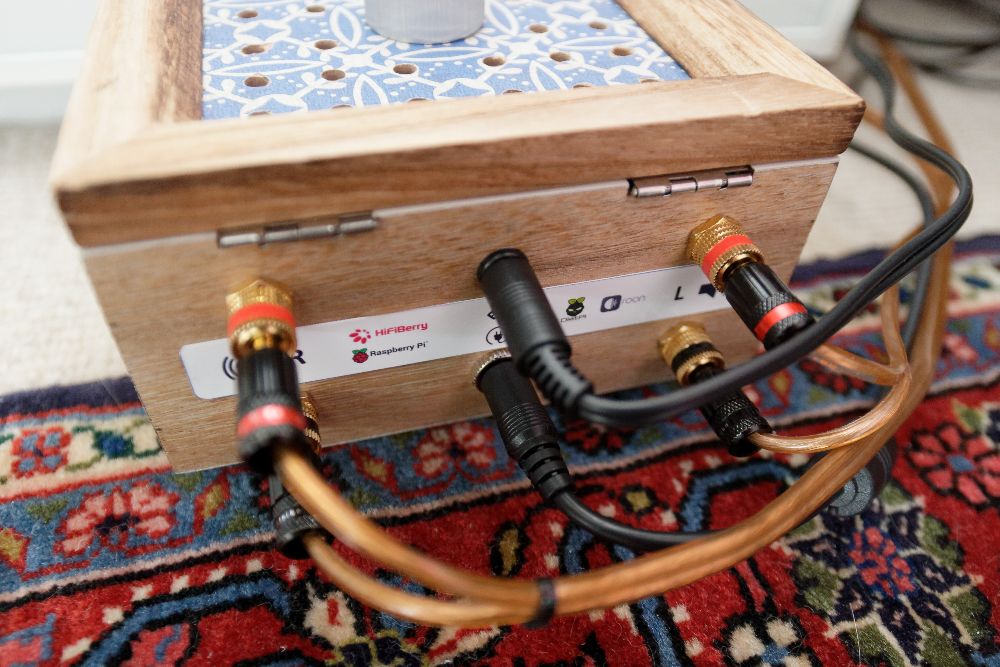

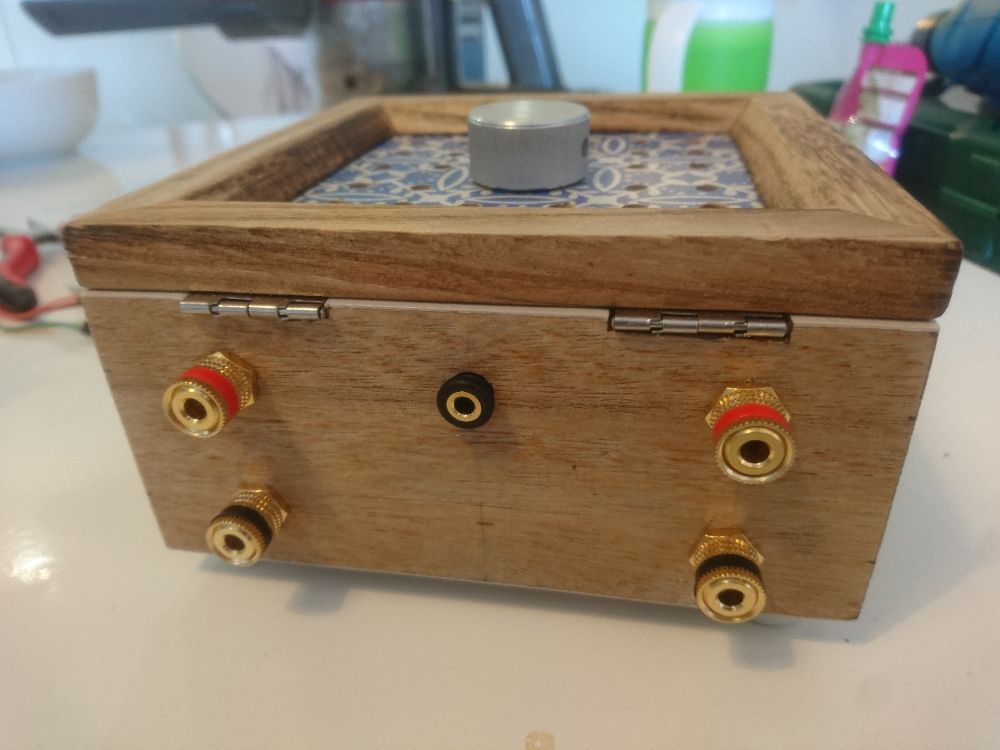

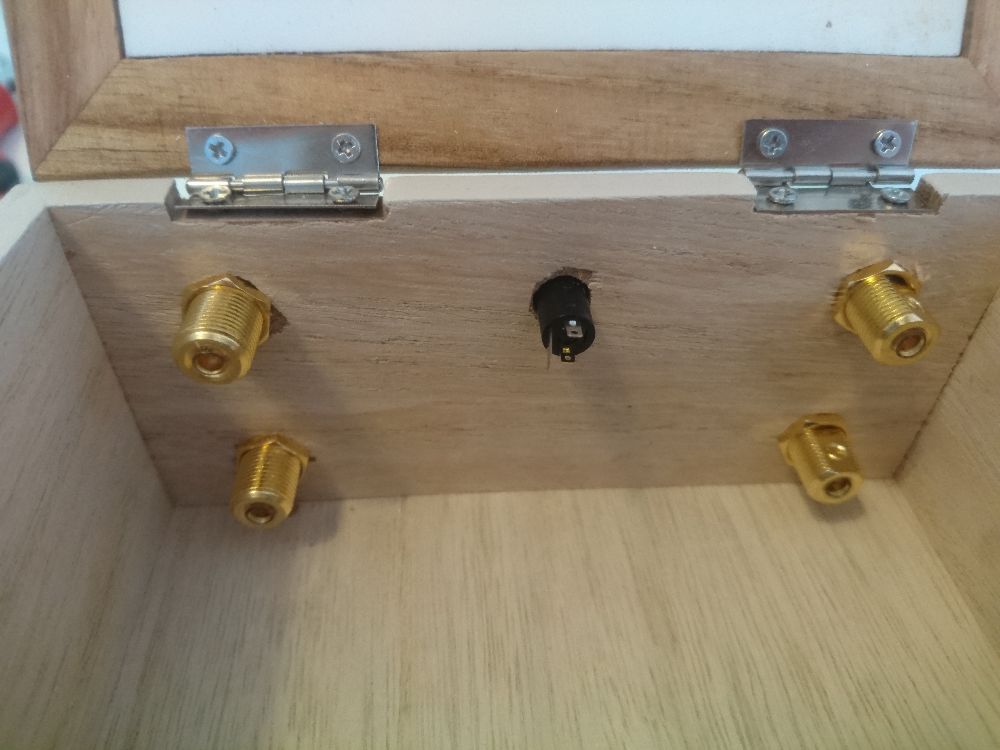

Speaker terminals

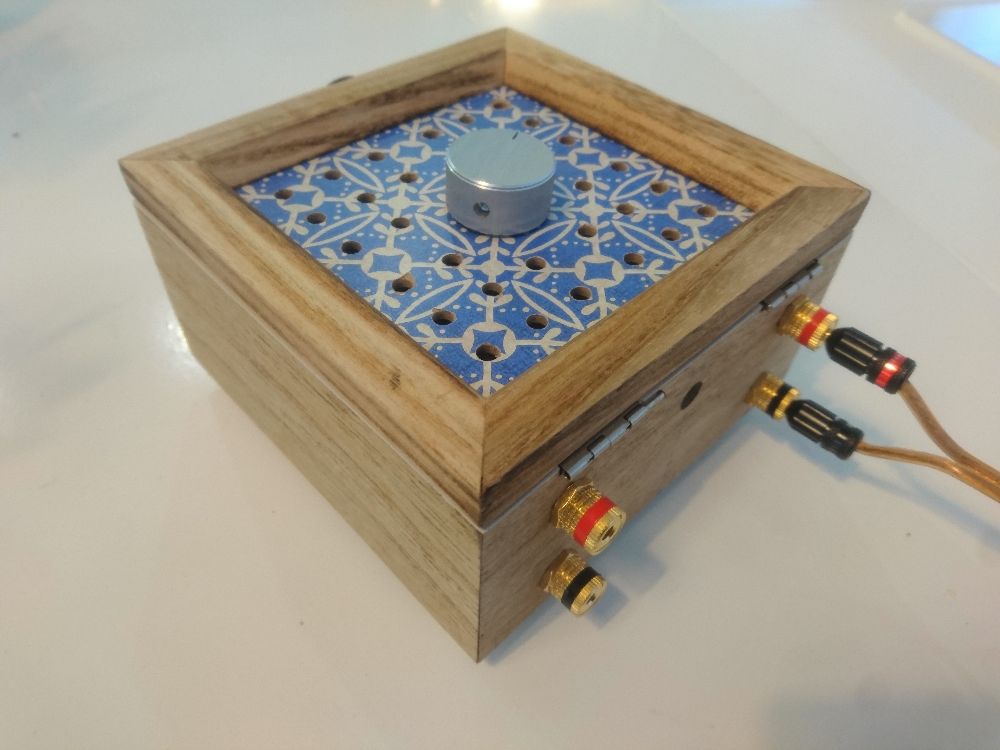

Four 10 mm holes later...

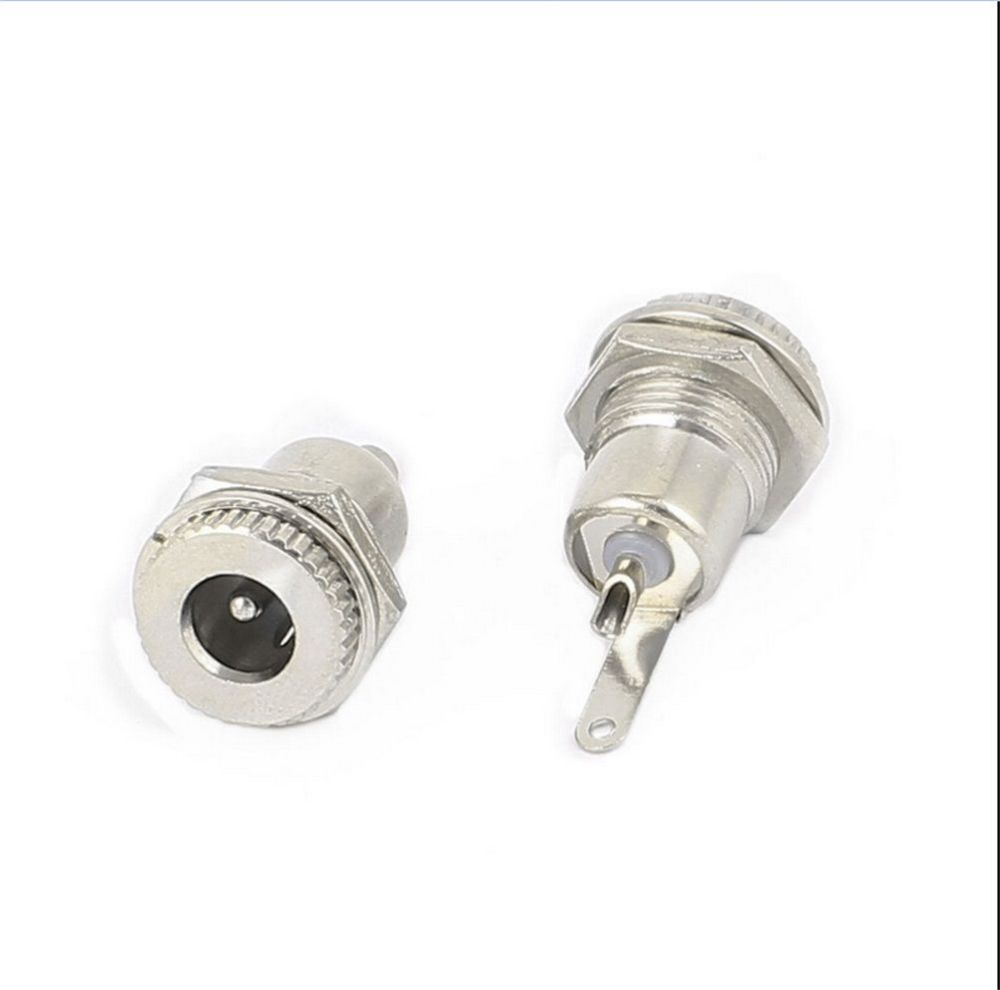

Power connector

This is a simple female 2.1 mm barrel socket, screwed into the wood. Not much to say here. It uses the screwed binding posts of the amplifier.

Infrared sensor and connector

Hardware

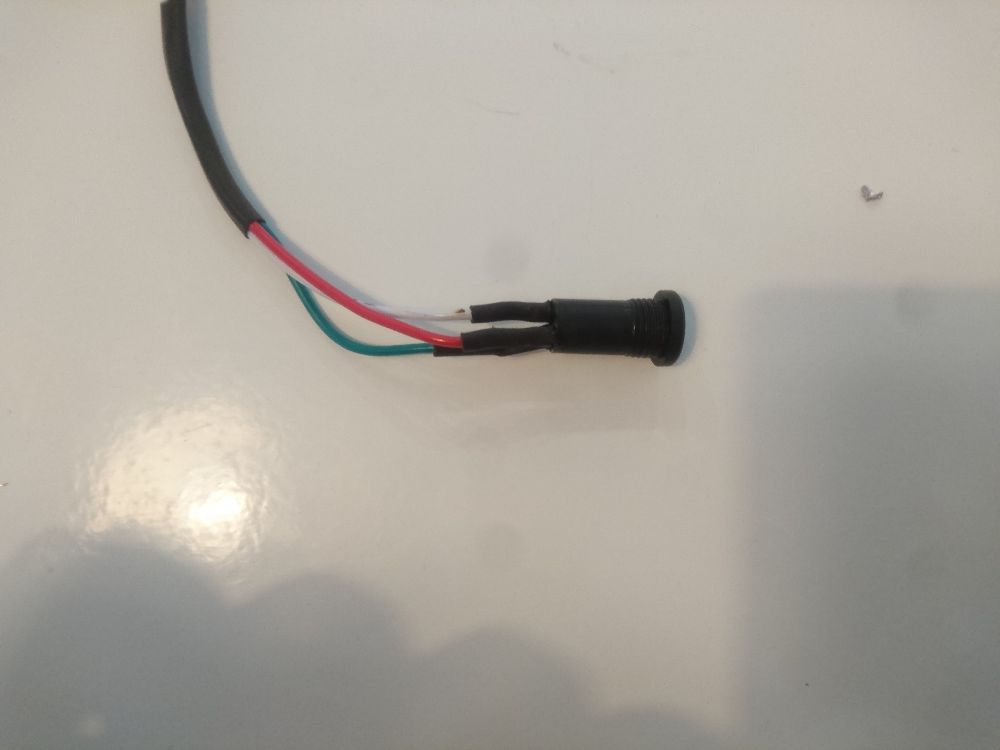

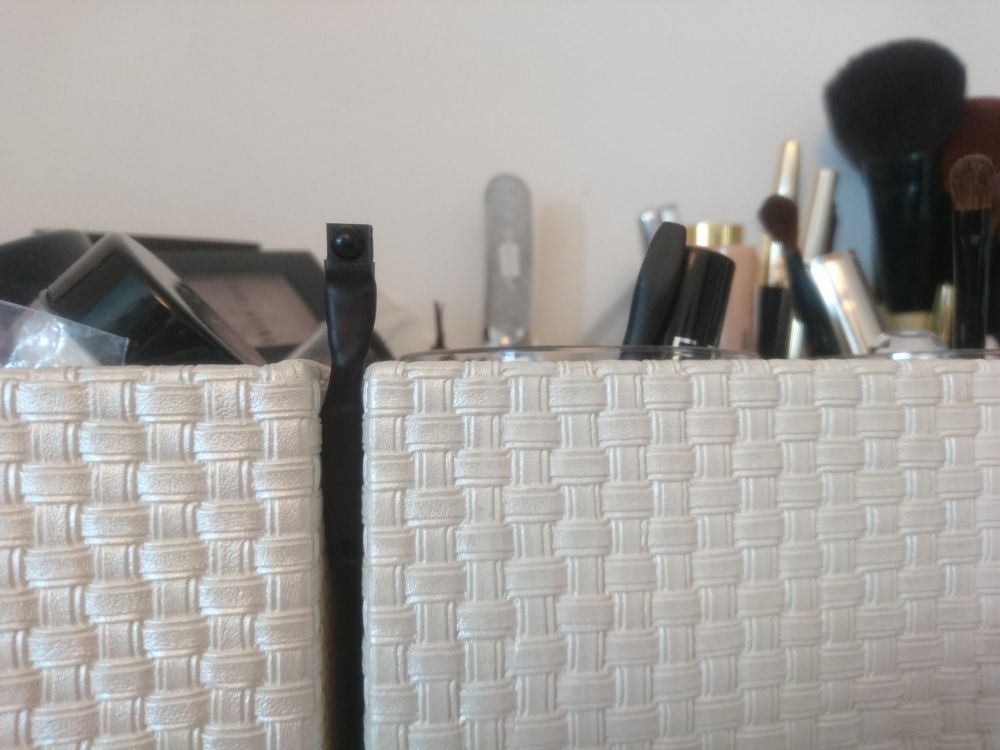

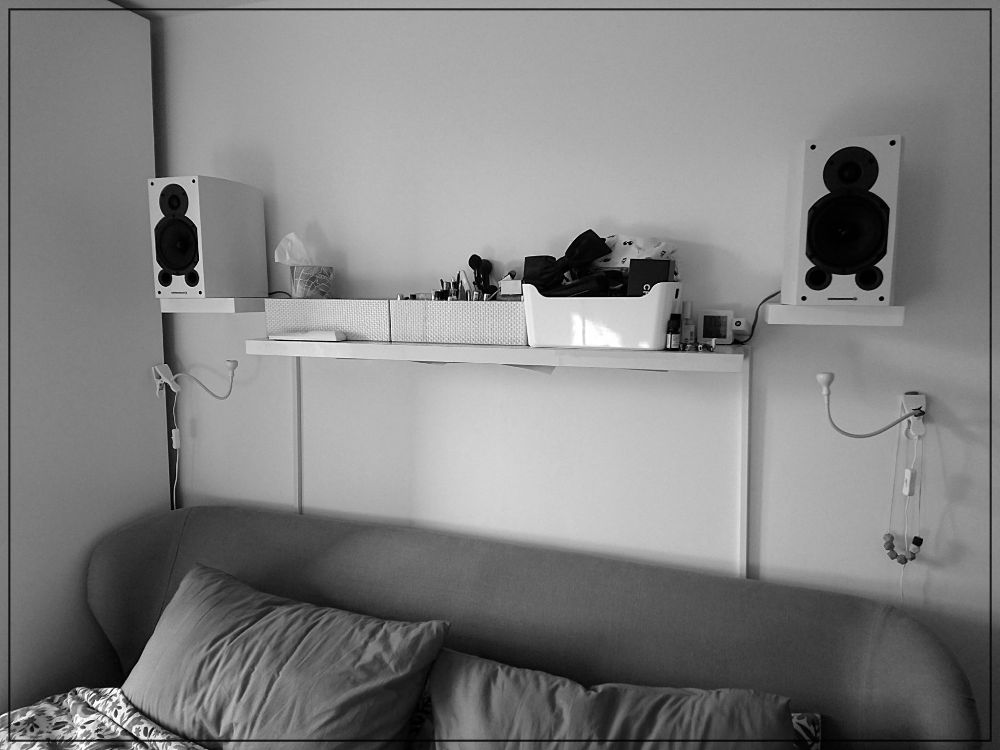

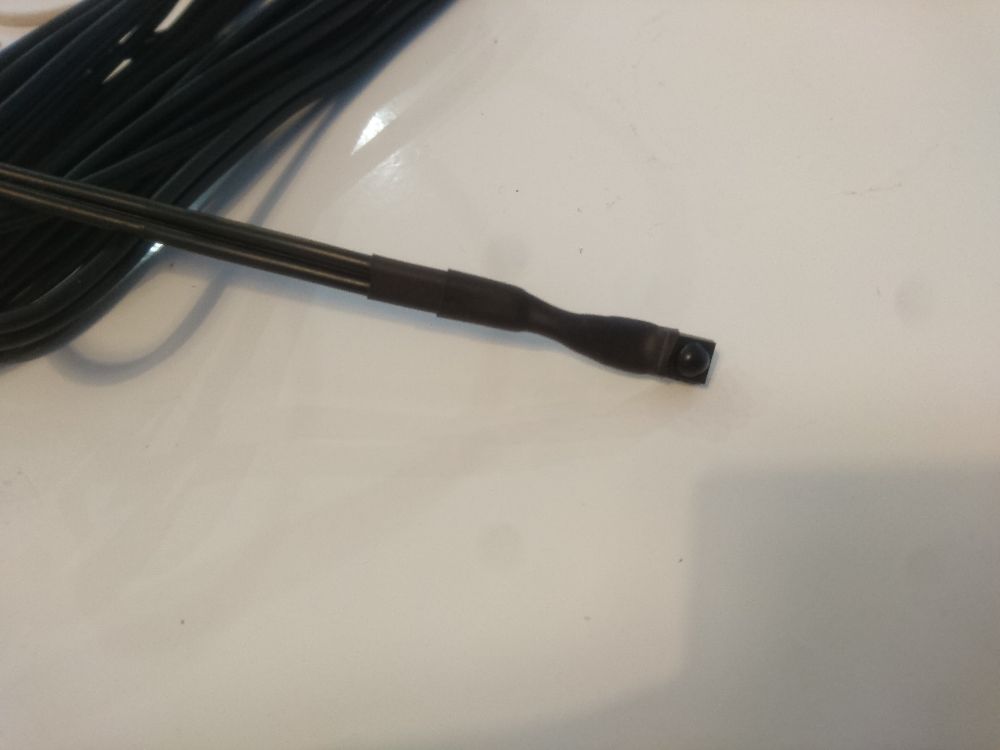

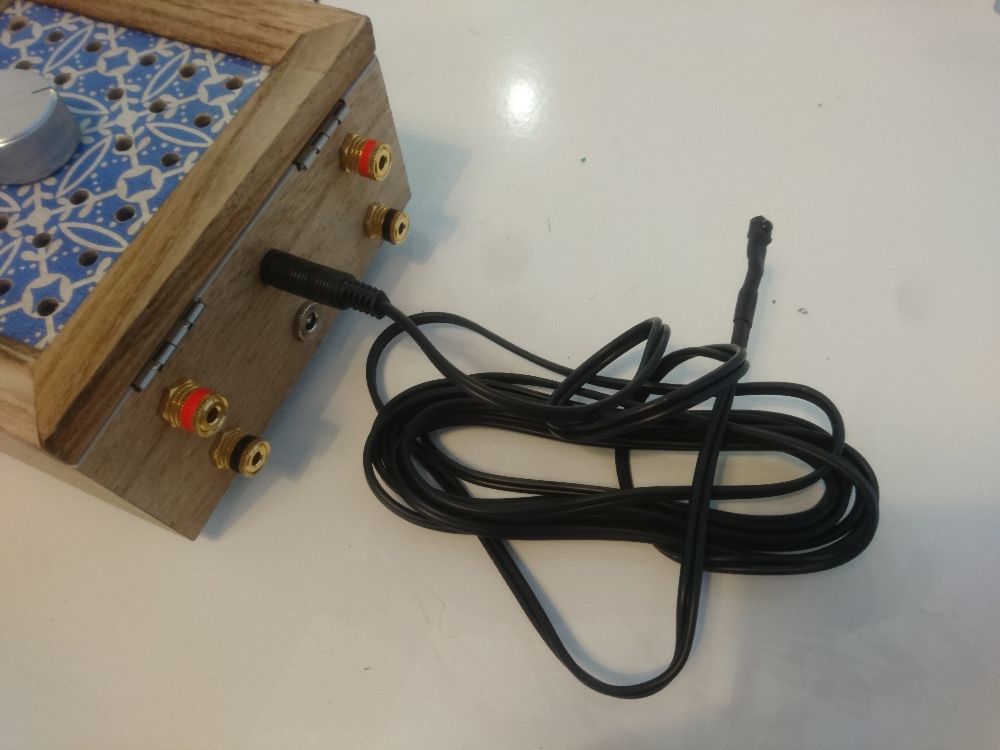

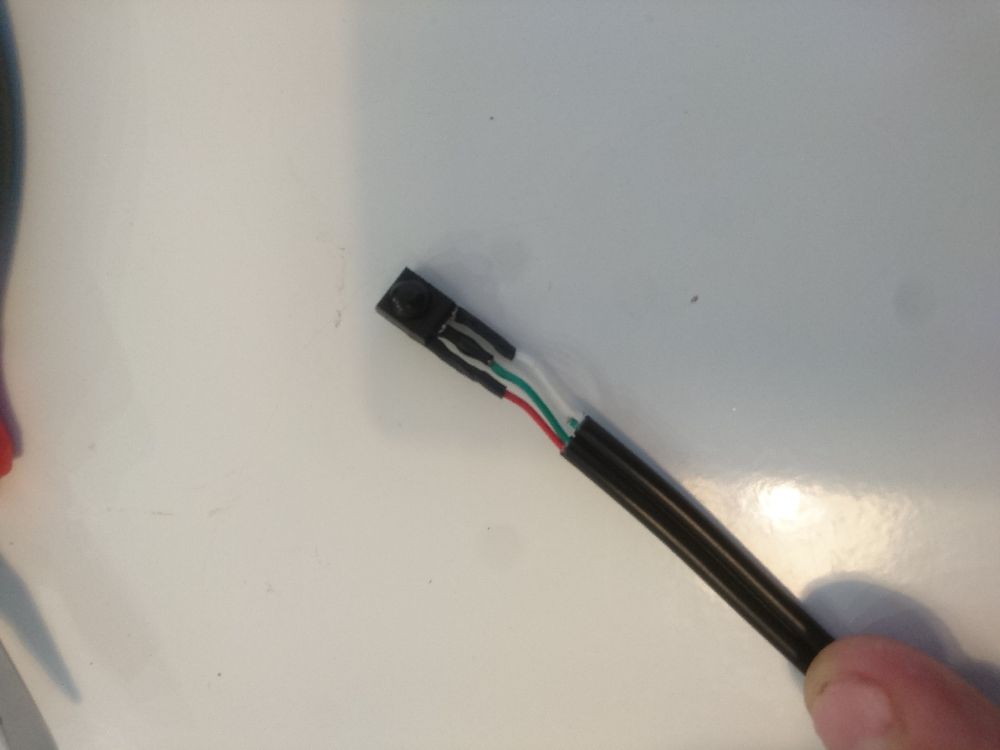

As the box is mostly hidden under the bed, I have attached the IR sensor at the end of a 3m cable, terminated with a 3.5 mm jack. Then sensor will end up living discreetly on a shelf above the bed.
The box is equipped with a jack socket.

Software

LIRC is used for understanding the remote input, IREXEC is used to take action on button presses, using amixer.

The LIRC configuration has dramatically changed in recent versions of Raspbian, making the guides commonly found on the Internet rather misleading.

Here is what needs to be done:

First, add the dtoverlay info in /boot/config.txt (/Dietpi/config.txt in DietPi), there will be no manual loading of any module:

dtoverlay=gpio-ir,gpio_pin=25

If you see online documentation using lirc-rpi and gpio_in_pin, it's from an old configuration method that got deprecated sometime in 2019.

Edit file /etc/lirc/lirc_options.conf and change from:

driver = devinput
device = auto

to:
driver = default
device = /dev/lirc0

You can test that data in coming in with:
systemctl stop lircd.socket
systemctl stop lircd.service
mode2 --driver default --device /dev/lirc0

Delete or suffix (.dist) the existing remote configuration file(s) in /etc/lirc/lircd.conf.d/

Get the know nomenclature for button names:

irrecord --list-namespace

Create a remote configuration file using:
irrecord -d /dev/lirc0

The output file in /etc/lirc/lircd.conf.d/ will be buggy, removing the last column of number for each key normally works. It did for me.

Test that it's working with

irw

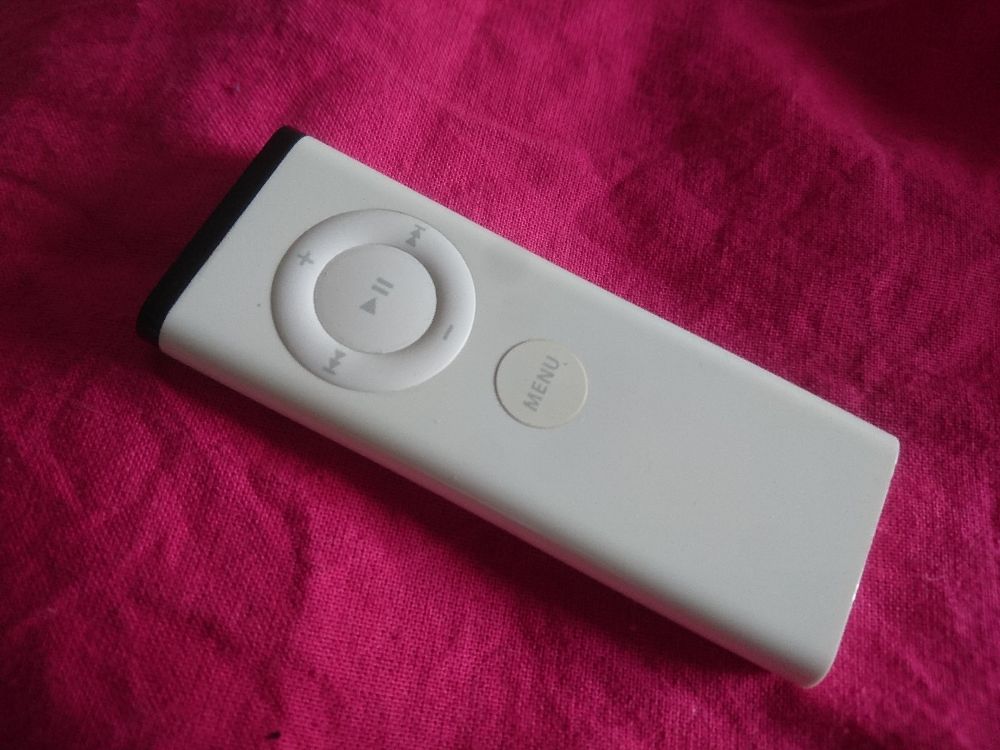

Then my buddy Pal gave me a white Apple remote, a very well known entity, to replace the no brand credit card thing I had salvaged from a TV tuner. You can find its configuration file easily. Pal is a very cool guy. Thanks again!

I'm using the following /etc/lirc/irexec.lircrc global configuration to control amixer on button presses:

begin
 prog = irexec
 remote = Apple_A1156
 button = KEY_MENU
 repeat = 0
 config = amixer sset Digital toggle > /dev/null
end

begin
 prog = irexec
 remote = Apple_A1156
 button = KEY_KPPLUS
 repeat = 1
 config = amixer sset Digital 1%+ > /devnull
end

begin
 prog = irexec
 remote = Apple_A1156
 button = KEY_KPMINUS
 repeat = 1
 config = amixer sset Digital 1%- > /dev/null
end

begin
 prog = irexec
 remote = Apple_A1156
 button = KEY_PLAY
 repeat = 0
 config = /usr/local/bin/roon_ir.sh playpause
end

begin
 prog = irexec
 remote = Apple_A1156
 button = KEY_FASTFORWARD
 repeat = 0
 config = /usr/local/bin/roon_ir.sh next
end

begin
 prog = irexec
 remote = Apple_A1156
 button = KEY_REWIND
 repeat = 0
 config = /usr/local/bin/roon_ir.sh previous
end

You will need this roon_ir.sh script to apply play/pause/next/previous to the proper zone, regardless of grouping (many thanks going to Guillaume for the jq stuff!):
#!/bin/sh

## Finds the zone of a Roon output_id and issues various commands
## Needs curl and jq on the machine running the script
## Need the following Roon extension: HTTP Calls for Roon API
## https://github.com/st0g1e/roon-extension-http-api

# Setup variables
#OUTPUTID=17018a614928ad155ce1fbec357bcd656208
OUTPUTID=170103af261386beb0995cc4d0c5f0acfc75
SERVER=192.168.1.106
SERVERPORT=3001

# Checking for needed tools
command -v curl >/dev/null 2>&1 || { echo "I require curl but it's not installed.  Aborting." >&2; exit 1; }
command -v jq >/dev/null 2>&1 || { echo "I require jq but it's not installed.  Aborting." >&2; exit 1; }

# Finding the zone_id based on output-id
BEDROOMZONE=$(curl -s -H "X-Requested-With: XMLHttpRequest" http://$SERVER:$SERVERPORT/roonAPI/listZones | jq --raw-output '.zones | .[] | select(.outputs[].output_id=="'$OUTPUTID'") | .zone_id')

echo roon_ir: Bedroom zone is: $BEDROOMZONE

# Sending the command via the HTTP API
case "$1" in
  playpause)
    curl -s -o /dev/null http://$SERVER:$SERVERPORT/roonAPI/play_pause?zoneId=$BEDROOMZONE
    echo roon_ir: Play-Pause using http://$SERVER:$SERVERPORT/roonAPI/play_pause?zoneId=$BEDROOMZONE
    ;;
  next)
    curl -s -o /dev/null http://$SERVER:$SERVERPORT/roonAPI/next?zoneId=$BEDROOMZONE
    echo roon_ir: Next using http://$SERVER:$SERVERPORT/roonAPI/next?zoneId=$BEDROOMZONE
    ;;
  previous)
    curl -s -o /dev/null http://$SERVER:$SERVERPORT/roonAPI/previous?zoneId=$BEDROOMZONE
    echo roon_ir: Previous using http://$SERVER:$SERVERPORT/roonAPI/previous?zoneId=$BEDROOMZONE
    ;;
  *)
    echo "Usage: $0 {playpause|next|previous}"
    exit 1
esac

I am using amixer commands to control the volume level, including a mute toggle, and HTTP Calls for Roon APIs to control Play/Pause, Next and Previous track though cURL.

Technical test with alsamixer:

Practical test with Roon:

Update of the amplifier board - September 2023

The Hifiberry amplifier board that I've used finally developed loud popping sounds, first during music start and stops, then during playback, continuously. This is a problem that I've experiences with ALL such boards when used in other projects. Mine only survived longer than usual. I suspect an engineering issue with input power regulation.

I have used an IQaudIO (acquired by Raspberry Pi) DigiAMP+ as a replacement. I've used it in many other projects, quite a few times replacing a defective Hifiberry product, with great success and reliability. It's almost a drop-in replacement, as I had to solder the power wires on the available pads (no screw-in terminals). The GPIO pins are also standard and thicker, making the connections far more secure. The pins used and software side are identical, outside of the audio HAT config.

IQaudIO DigiAMP+ on-board
